Installing A-Pillar

  1. Install A-pillar and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION") .

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
  2. Apply adhesive to the marked areas. → Application depth: 3.0 mm

    Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

    G09993431Courtesy of PORSCHE CARS NORTH AMERICA, INC.

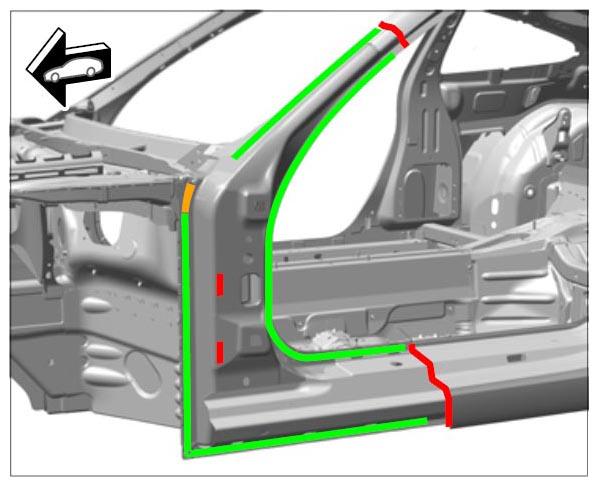

    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Bonding + resistance spot-welding
    Yellow Bonding + riveting
  3. Resistance spot-weld the A-pillar.
    1. 3.1. Rivet in area -A-  . → BLIND RIVET 999.190.227.01

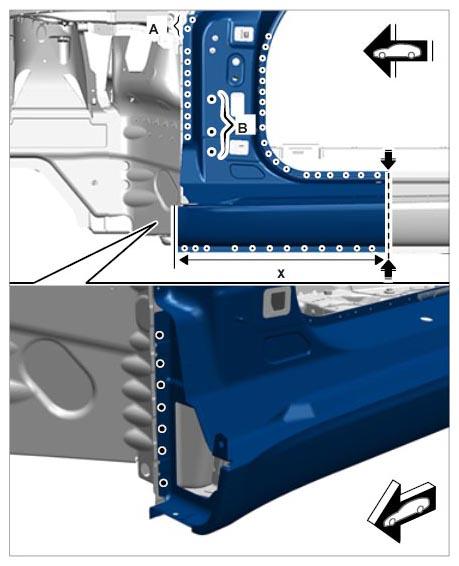

    2. 3.2. Plug-weld area -B-  using inert gas.
      G09993432Courtesy of PORSCHE CARS NORTH AMERICA, INC.

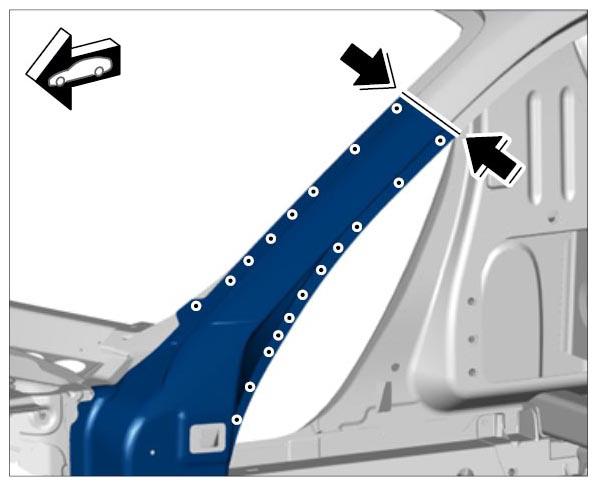

  4. Plug-weld area -arrows-  using inert gas.
    G09993433Courtesy of PORSCHE CARS NORTH AMERICA, INC.

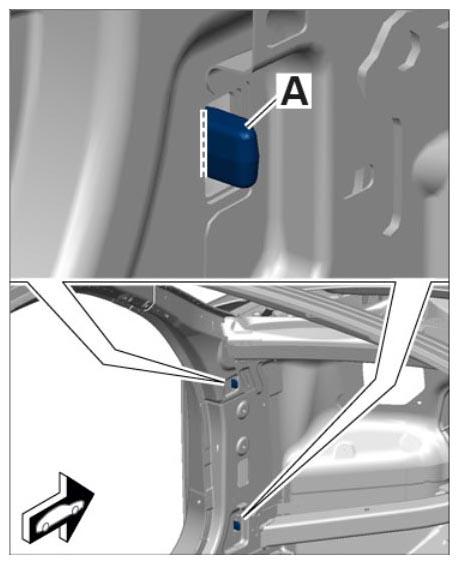

  5. Apply a full weld to the door hinge in area -A-  using inert gas.
    G09993434Courtesy of PORSCHE CARS NORTH AMERICA, INC.

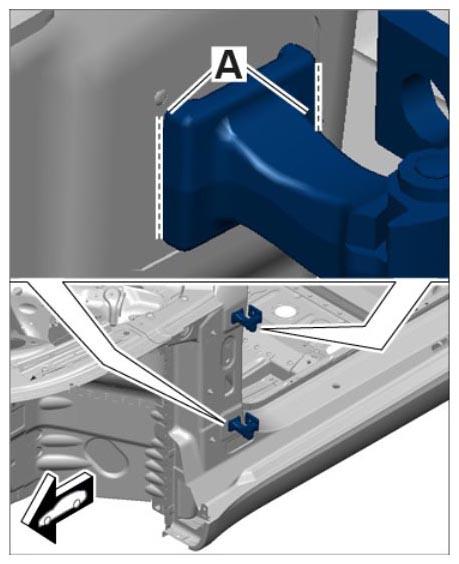

  6. Apply a full weld to the door hinge in area -A-  using inert gas.
    G09993435Courtesy of PORSCHE CARS NORTH AMERICA, INC.

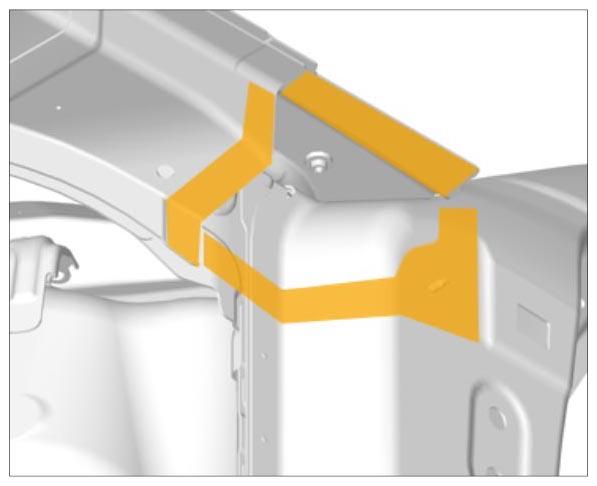

  7. Prepare connection areas on bracket for longitudinal member for wheel housing.
    G09993436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Fit in bracket for longitudinal member for wheel housing.

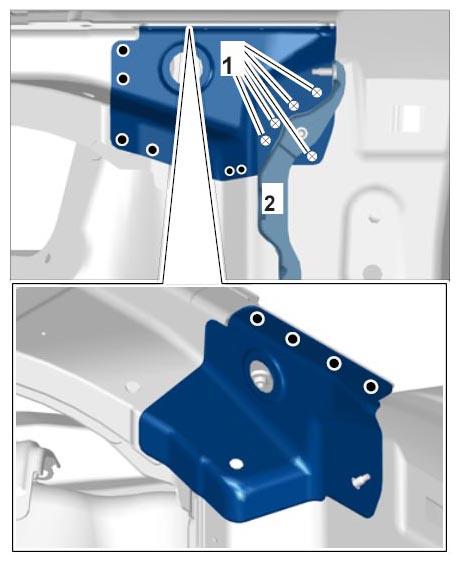

    1. 8.1. For better positioning of the bore holes, fit the wing holder -2-  .
    2. 8.2. Drill holes for rivets in the marked areas -1-  using a drill bit with → Diameter: 6.6 mm  Drill bit diameter of 6.6 mm.
      G09993437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
      • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
      • Do not begin bonding work until all materials and tools necessary for later repair work are available.
  9. Apply adhesive. → Application depth: 3.0 mm

    Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

    1. 9.1. Fit and secure supporting plate for longitudinal member for wheel housing.
      G09993438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

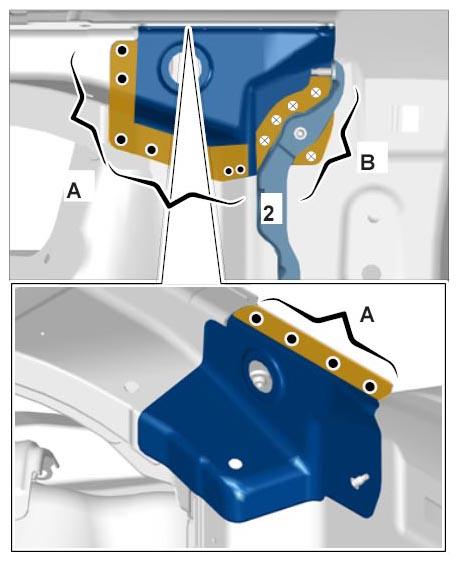

  10. Rivet in bracket for longitudinal member for wheel housing in area -B-  . → BLIND RIVET 999.190.230.01
    1. 10.1. Resistance spot-weld bracket for longitudinal member for wheel housing in area -A-  .
      G09993439Courtesy of PORSCHE CARS NORTH AMERICA, INC.
