Removing A-Pillar

Information

Drill out spotwelds B  through one plate thickness.

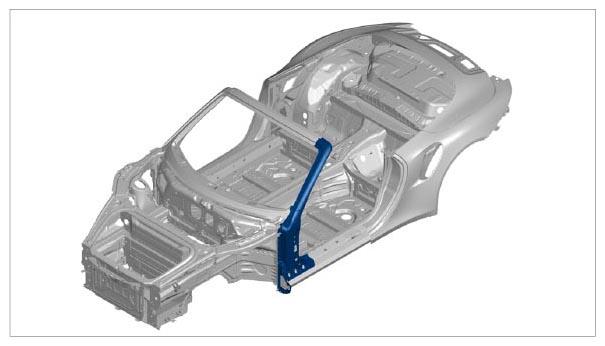

Fig 1: A-Pillar Component Location (Carr. Cabrio, Carr. S Cabrio, Carrera Gts Cabrio, Targa 4, Targa 4S, Targa 4 Gts, Carr. 4 Cabrio, Carr. 4S Cabrio, Turbo Cabrio, Carr. 4 Gts Cabrio, Turbo S Cabrio)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

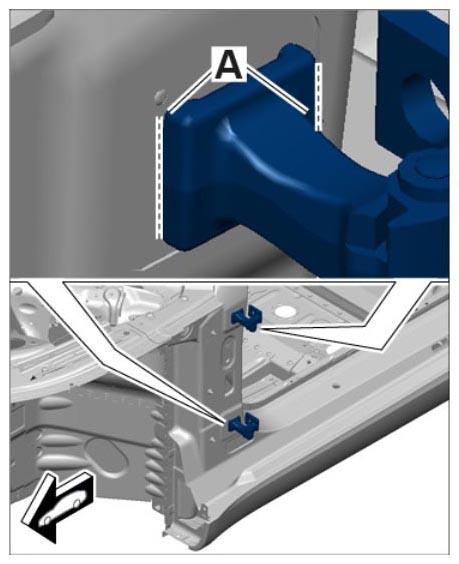

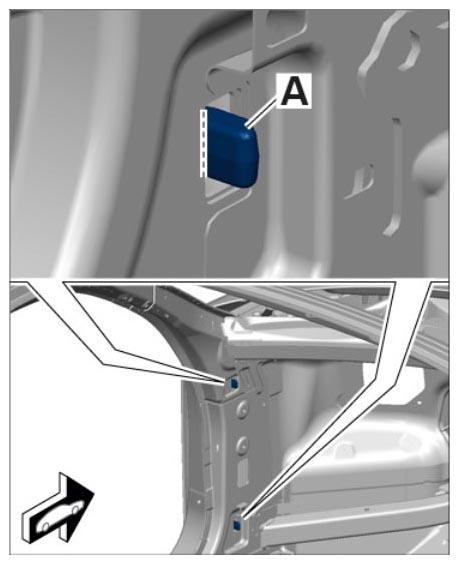

1. Grind down welded seams -A-  on the door hinges.
   1. 1.1. Remove door hinges.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Remove supporting plate for longitudinal member for wheel housing.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

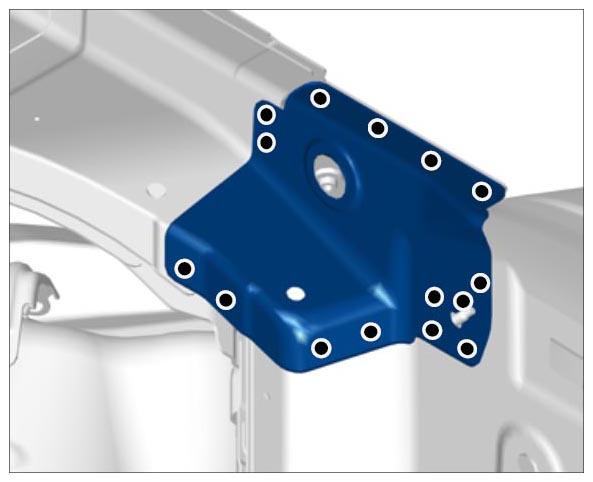

   1. 2.1. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

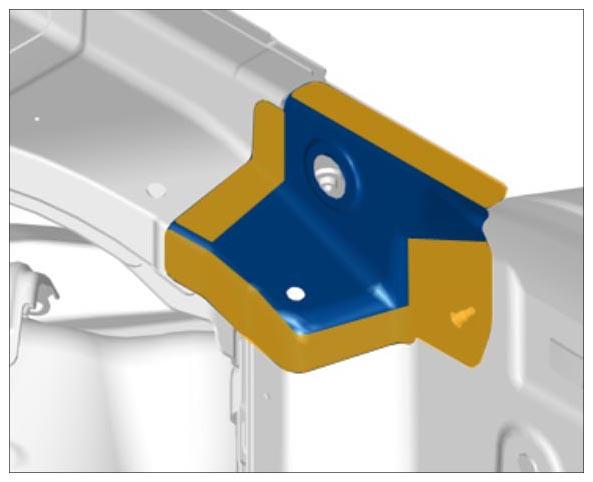

3. Heat bonding areas on supporting plate for longitudinal member for wheel housing.
   1. 3.1. Remove supporting plate for longitudinal member for wheel housing.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Drill out the connection point on one side only. Do not damage the plate underneath.

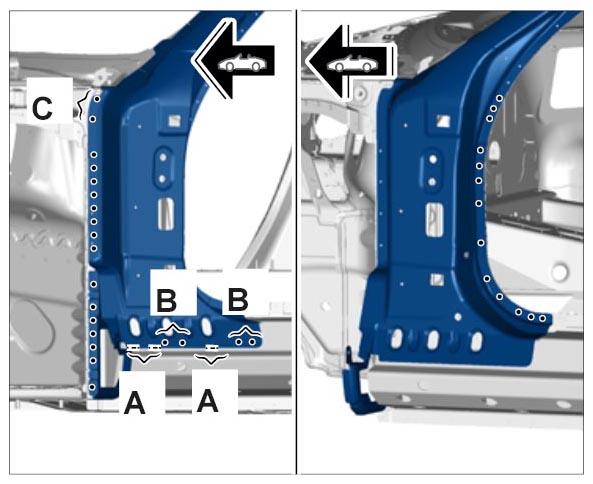

4. Drill out spotwelds using spotweld drill  .
   1. 4.1. Grind down welded seams in area -A-  .

      Information

      Drill out the connection point on one side only. Do not damage the plate underneath.

   2. 4.2. Drill out spotwelds -B-  using spotweld drill  .
   3. 4.3. Drill through spotwelds -C-  using spotweld drill  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Drill out the connection point on one side only. Do not damage the plate underneath.

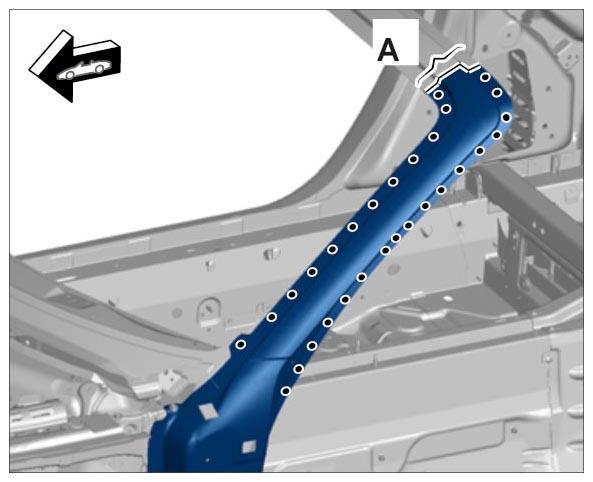

5. Drill out spotwelds using spotweld drill  .
   1. 5.1. Grind down welded seam -A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Drill out spotwelds A  through two plate thicknesses.

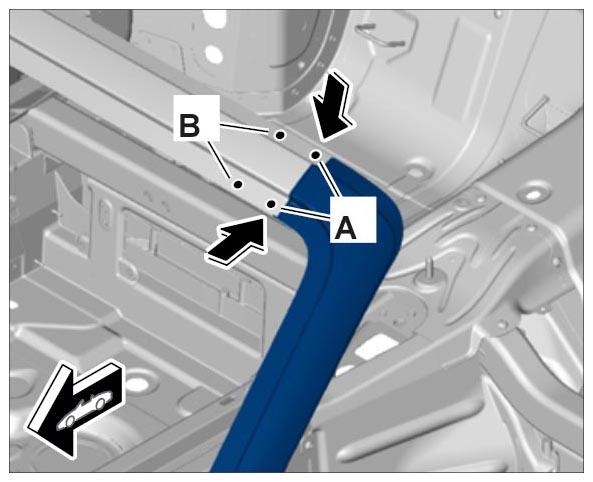

6. Drill through spotwelds -A-  on upper part of roof frame.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

   1. 6.1. Drill out spotwelds -B-  on upper part of roof frame.
   2. 6.2. Make a small gap in area -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

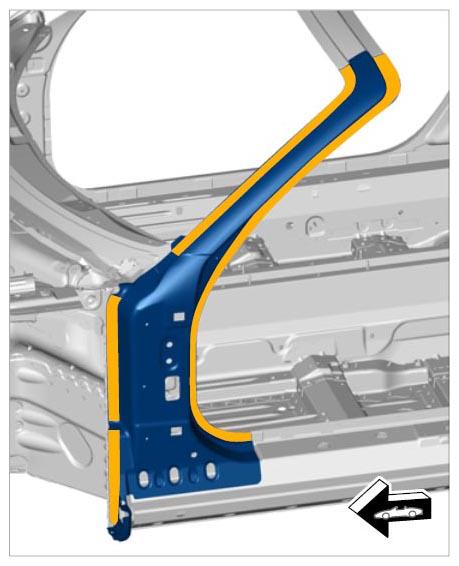

7. Heat the bonding surfaces.
   1. 7.1. Remove A-pillar.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
