Installing A-Pillar

  1. Install A-pillar and check that it fits perfectly. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION") .

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.

    Information

    Adhesive must not be applied to areas to be plug-welded using inert gas.

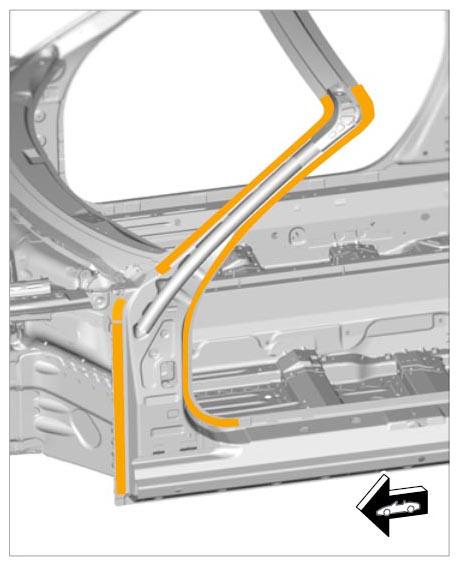

  2. Apply adhesive. → Application depth: 3.0 mm

    Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

    G09993404Courtesy of PORSCHE CARS NORTH AMERICA, INC.

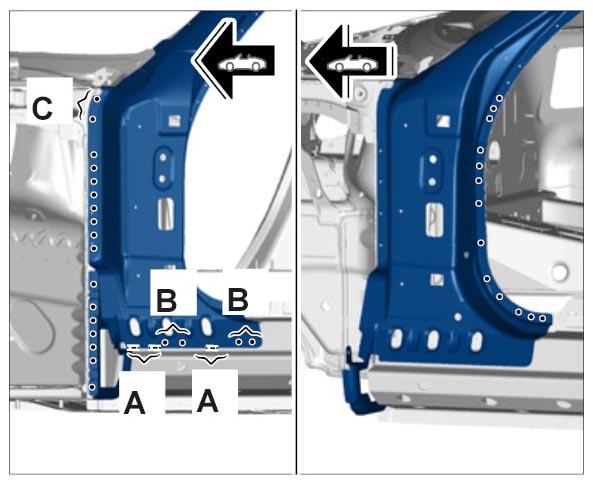

  3. Resistance spot-weld the A-pillar.
    1. 3.1. Apply a full weld to area -A-  using inert gas.

      Information

      Adhesive must not be applied to areas to be plug-welded using inert gas.

    2. 3.2. Plug-weld area -B-  carefully.
      G09993405Courtesy of PORSCHE CARS NORTH AMERICA, INC.

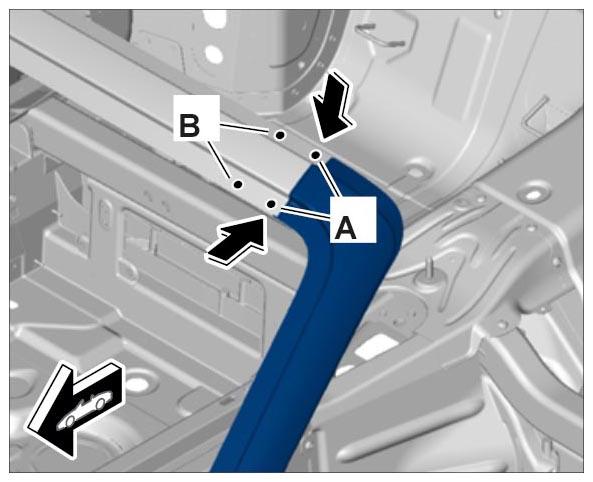

  4. Fit in roof pillar in area -arrows-  .
    1. 4.1. Plug-weld area -A; B-  carefully.
      G09993406Courtesy of PORSCHE CARS NORTH AMERICA, INC.

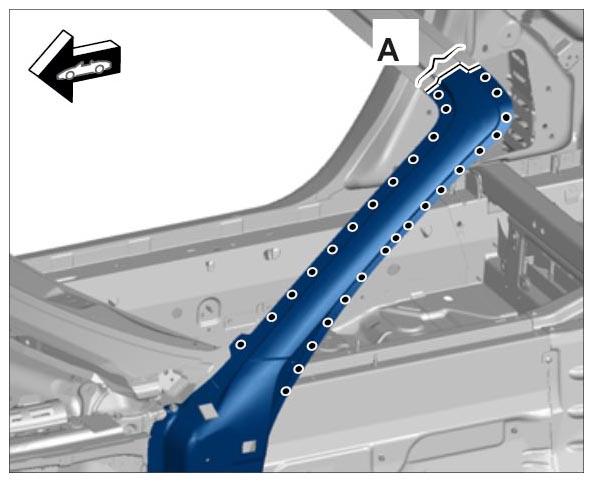

  5. Resistance spot-weld the A-pillar.
    1. 5.1. MAG-weld area -A-  .
      G09993407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Prepare connection areas on bracket for longitudinal member for wheel housing.
    G09993408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

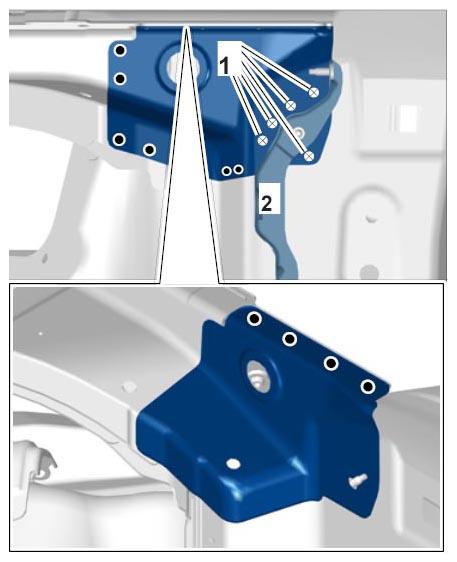

  7. Fit in bracket for longitudinal member for wheel housing.
    1. 7.1. For better positioning of the bore holes, fit the wing holder -2-  .
    2. 7.2. Drill holes for rivets in the marked areas -1-  using a drill bit with → Diameter: 6.6 mm  Drill bit diameter of 6.6 mm.
      G09993409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
      • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
      • Do not begin bonding work until all materials and tools necessary for later repair work are available.

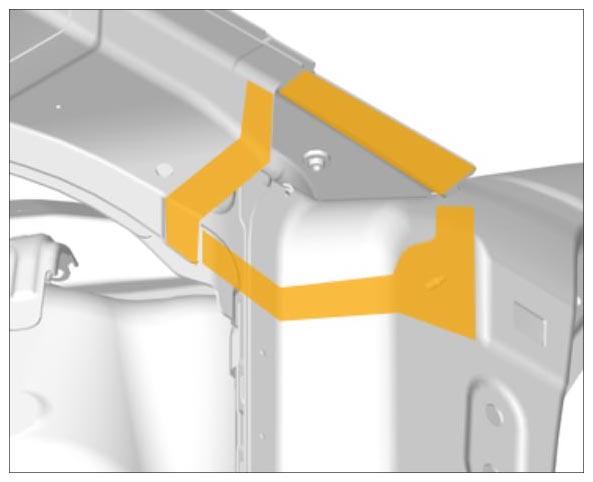

  8. Apply adhesive. → Application depth: 3.0 mm

    Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

    1. 8.1. Fit and secure supporting plate for longitudinal member for wheel housing.
      G09993410Courtesy of PORSCHE CARS NORTH AMERICA, INC.

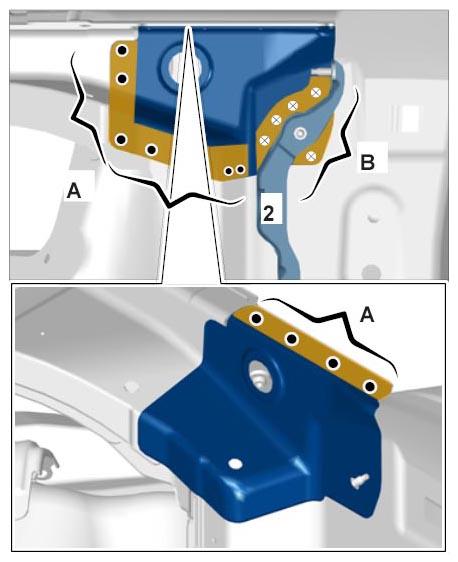

  9. Rivet in bracket for longitudinal member for wheel housing in area -B-  . → BLIND RIVET 999.190.230.01
    1. 9.1. Resistance spot-weld bracket for longitudinal member for wheel housing in area -A-  .
      G09993411Courtesy of PORSCHE CARS NORTH AMERICA, INC.

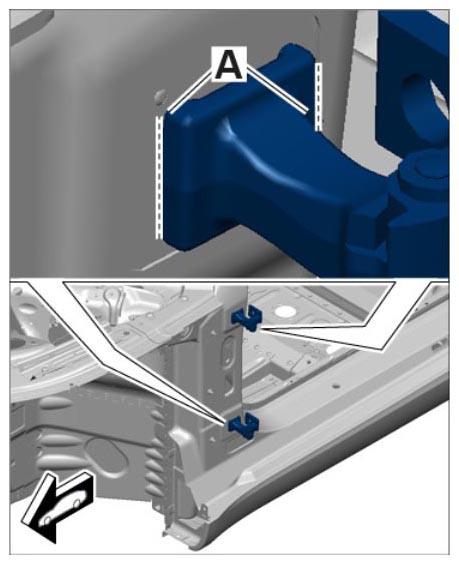

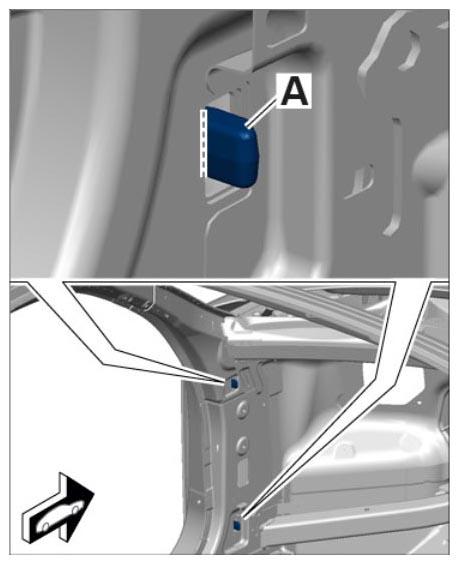

  10. Apply a full weld to the door hinges in area -A-  using inert gas.
    G09993412Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    G09993413Courtesy of PORSCHE CARS NORTH AMERICA, INC.
