Preparing Rear Cross Member For Installation
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Fit in rear cross member and secure it to the body.

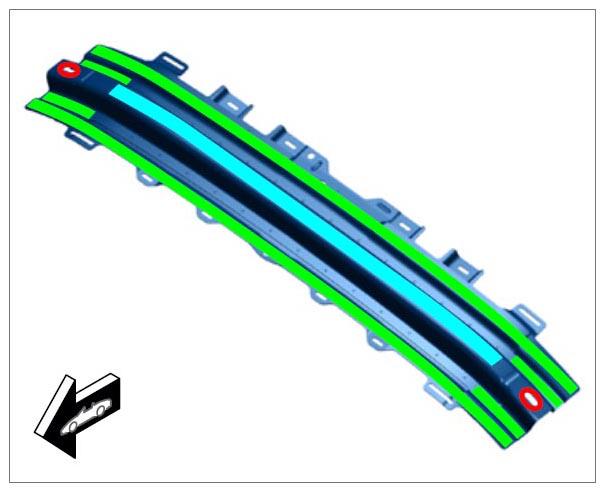

- Prepare upper part of rear cross member for bonding and welding.

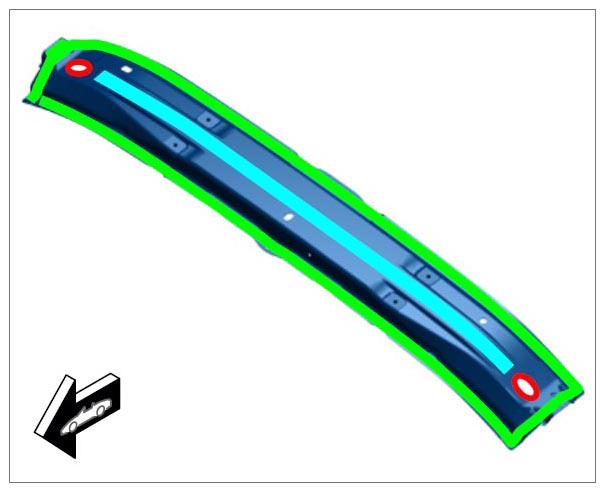

- Prepare lower part of rear cross member for bonding and welding.
Green Bonding + resistance spot-welding Blue Bonding Red Plug-welding/apply a full weld using inert gas without bonding
