Preparing Connection Areas Of The Body

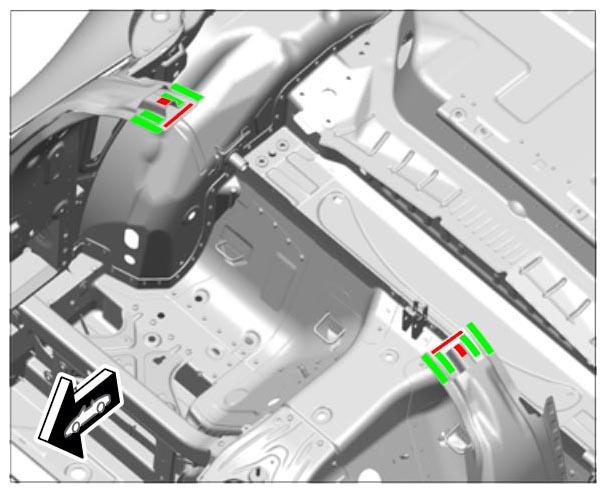

  1. Prepare the marked connection areas for bonding.
    G09993382Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Bonding + resistance spot-welding
    Blue Bonding
    Red Plug-welding/apply a full weld using inert gas without bonding
