Installing Upper Front Roof Frame

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

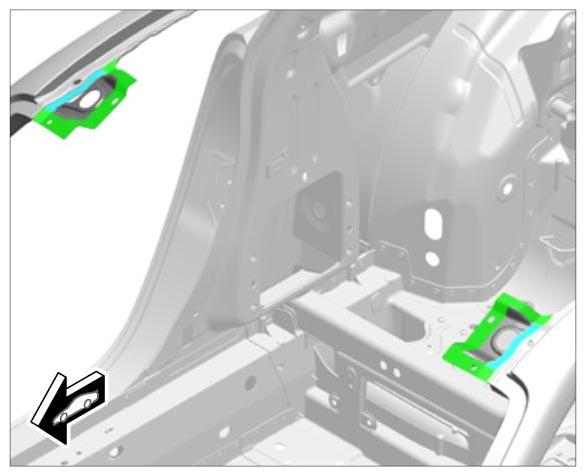

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blue	Bonding
   Green	Bonding + resistance spot-welding

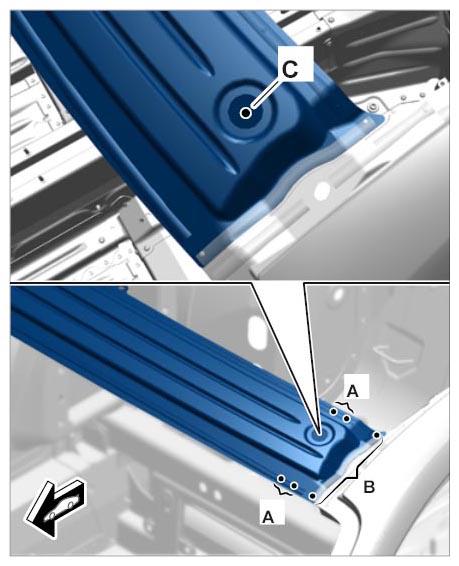

2. Install upper front roof frame.
   1. 2.1. Resistance spot-weld areas -A; B; C-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
