Preparing Upper Front Roof Frame For Installation

Information

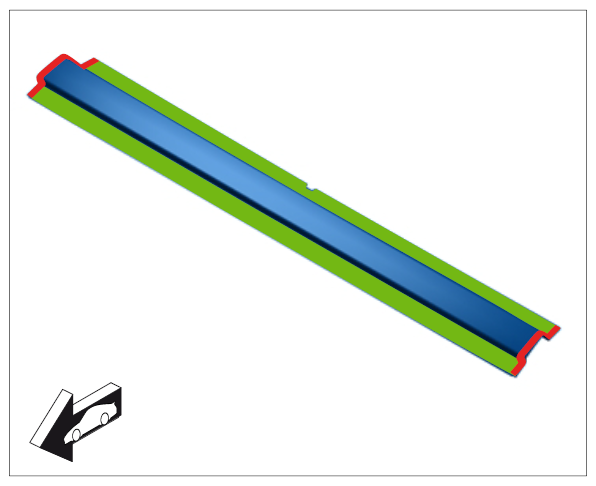

  1. Prepare roof frame top half for bonding and welding.
    G09993352Courtesy of PORSCHE CARS NORTH AMERICA, INC.

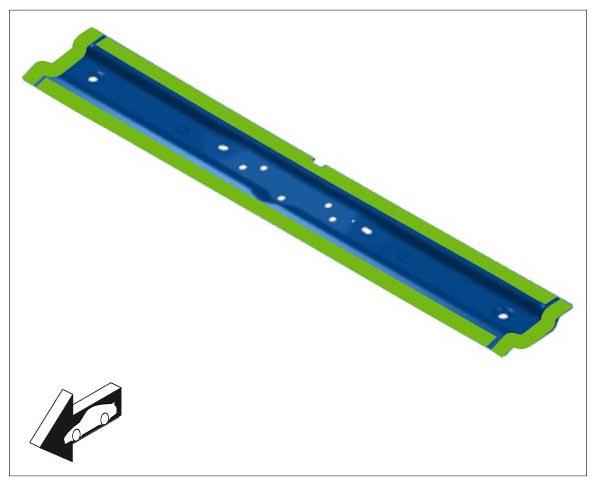

  2. Prepare roof frame bottom half for bonding and welding.
    G09993353Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Resistance spot-welding
