Preparing Body Connection Areas

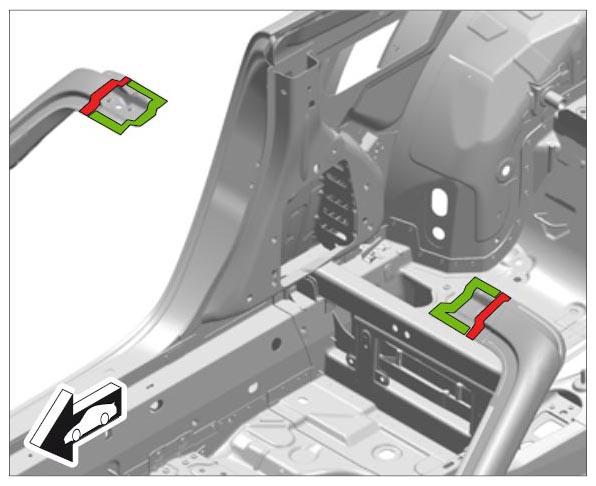

  1. Prepare connection areas for bonding and welding.
    G09993354Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Resistance spot-welding
