Removing Roof Pillar

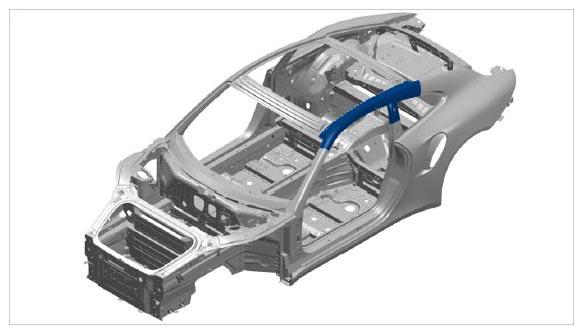

Fig 1: Roof Pillar Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

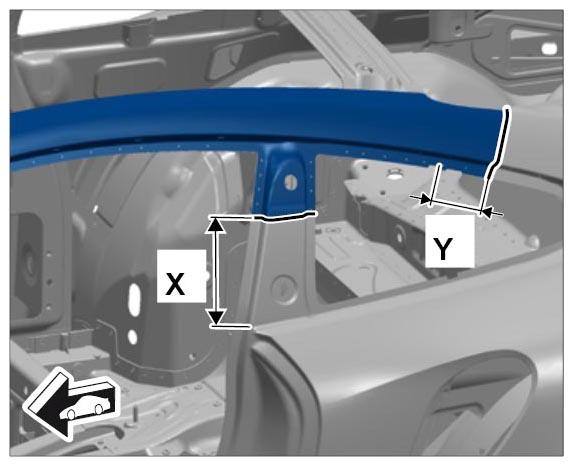

1. Mark and make cuts. → Distance: 150 mm

   → Distance: 100 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

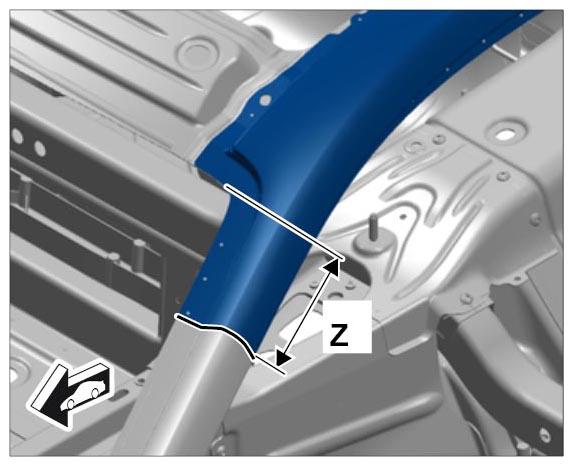

2. Mark and make cut. → Distance: 150 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

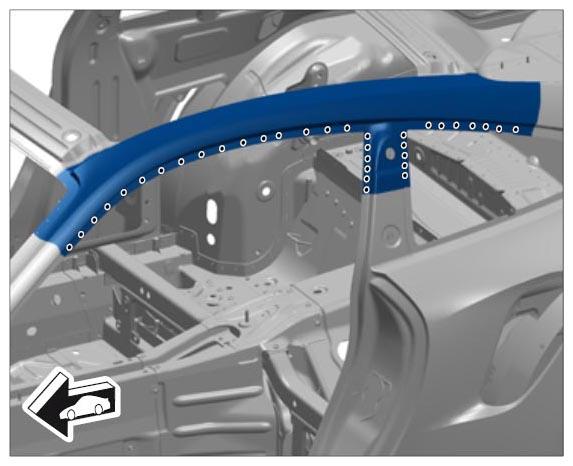

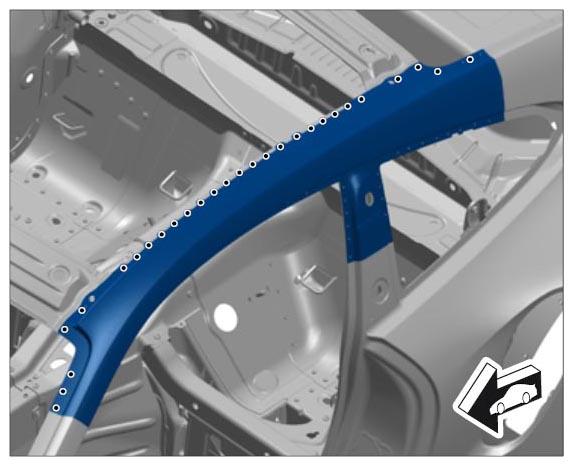

3. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

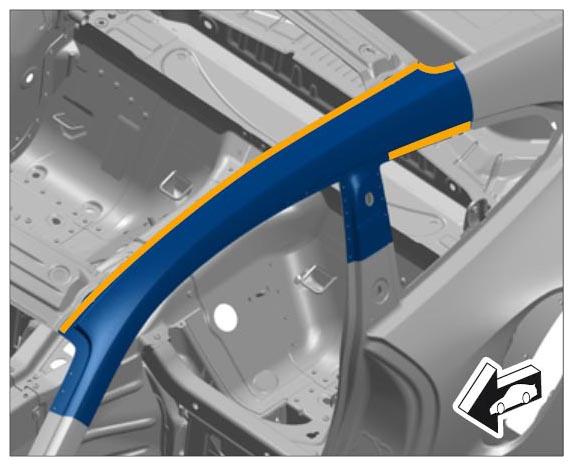

4. Heat bonding surfaces.
   1. 4.1. Remove roof pillar.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
