Preparing Roof Pillar

  1. Fit the new part and secure it to the body. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION") .
    1. 1.1. Cut the new part at the transition points to the body, leaving an overlap of 30 mm.

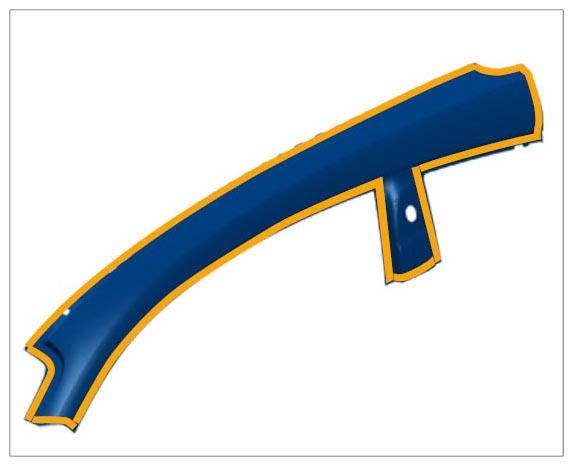

    2. 1.2. Prepare the marked connection areas of the roof pillar.
      G09993336Courtesy of PORSCHE CARS NORTH AMERICA, INC.
