WM, 50561931 Removing And Installing Front Wheel Housing Liner (Front Part): Notes

TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screw securing air vane to body	Item 1	Tightening torque	3 N.m (2 ft.lb)

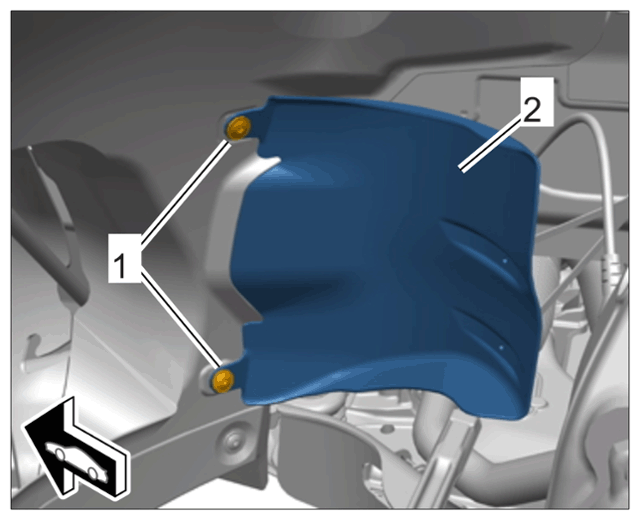

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air vane
Screws on lower part of front wheel housing liner (front part)	Item 1	Tightening torque	3 N.m (2 ft.lb)

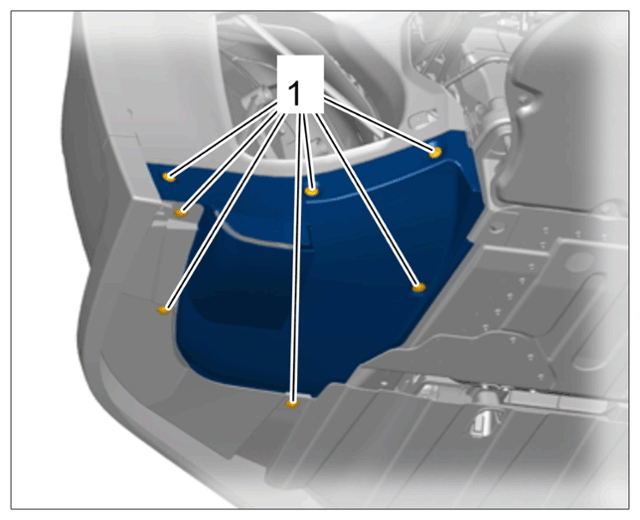

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of wheel housing liner
Screws on upper part of front wheel housing liner (front part)	Item 1	Tightening torque	3 N.m (2 ft.lb)

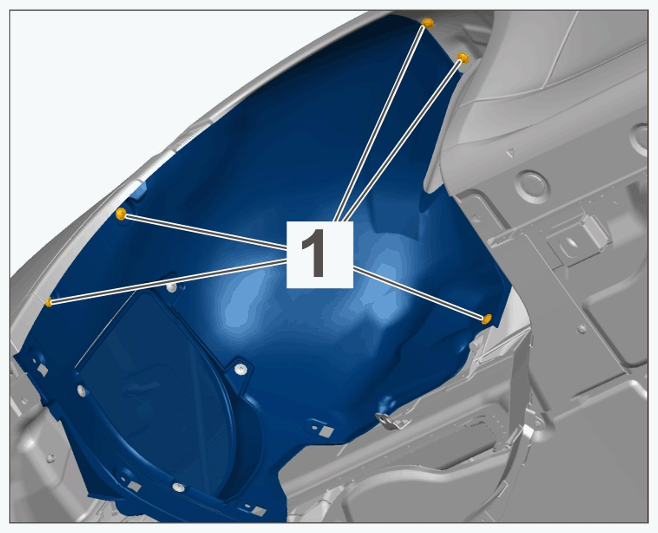

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of front wheel housing liner (front part)
