WM, 505619 Removing And Installing Front Wheel Housing Liner: Notes

TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screw securing air vane to body	Item 1	Tightening torque	3 N.m (2 ft.lb)

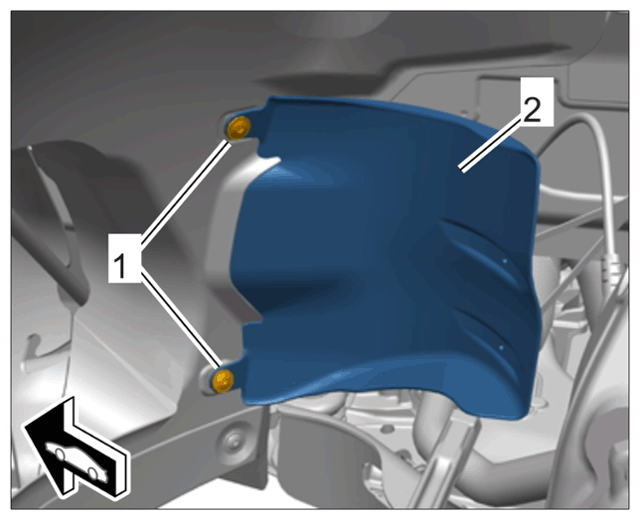

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air vane
Fastening screw securing front wheel housing liner (front part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

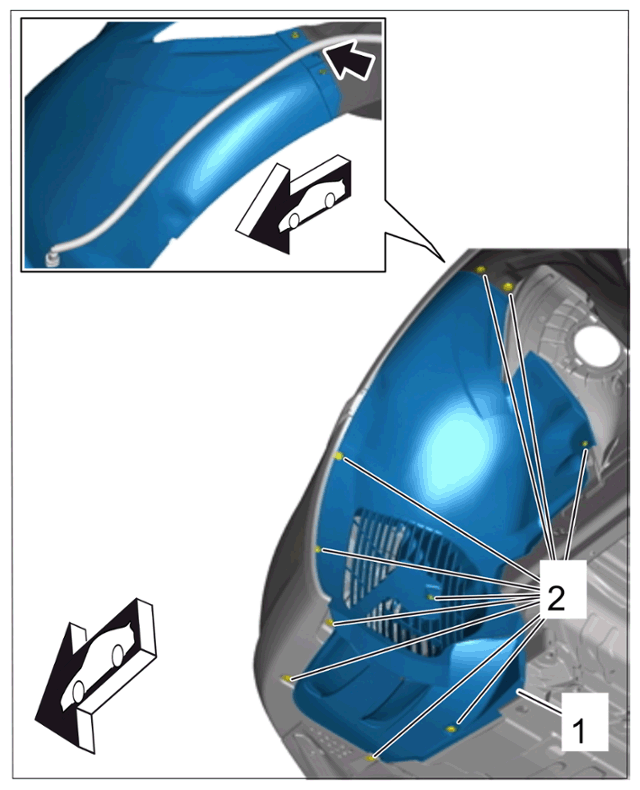

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (front part)
Fastening nuts securing front wheel housing liner (rear part) to body	Item 3	Tightening torque	3 N.m (2 ft.lb)

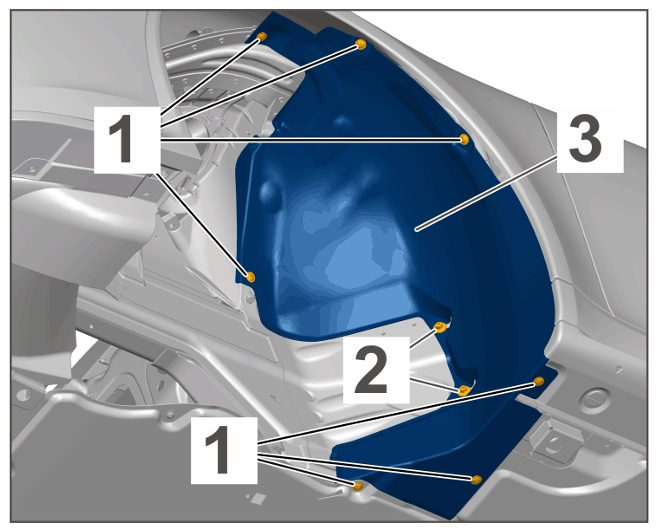

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Screws securing front wheel housing liner (rear part) to body	Item 1	Tightening torque	3 N.m (2 ft.lb)

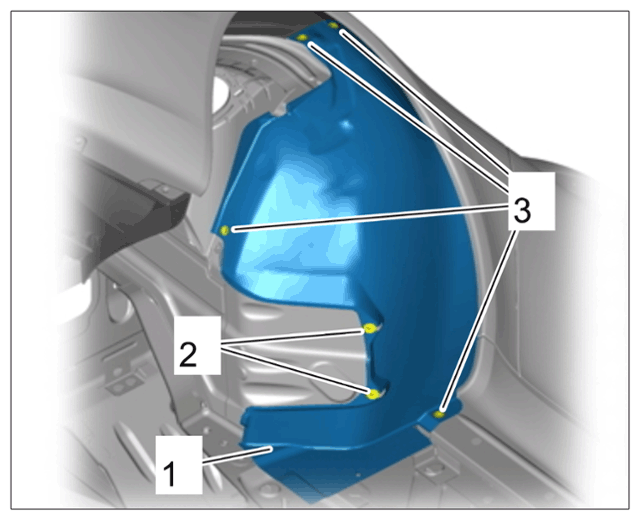

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
