WM, 50557945 Painting Wing (Design): Notes

PARTS DESCRIPTION

Part number	Description	Addition	Quantity
> 999 503 943/944	Decorative film for wing 991 503 943/944

TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1	V Tolerance 2

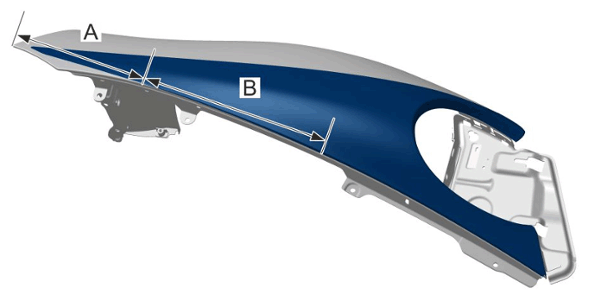

Painting in transition area		Spacing	300 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Painting transition area
Painting in transition area		Area	500 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Painting transition area

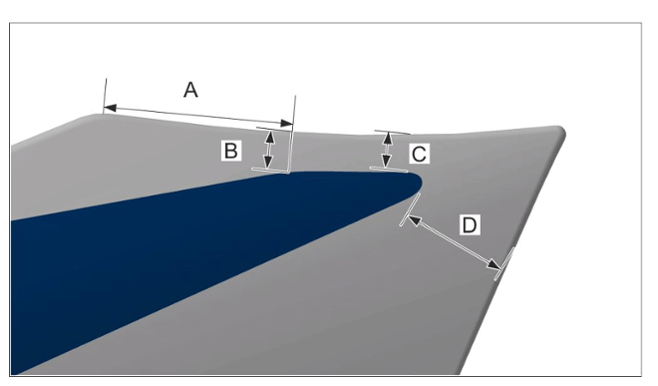

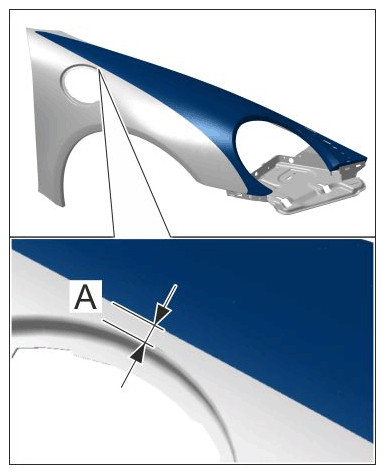

Positioning masking		Spacing	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positioning painting template
Positioning masking		Spacing	53 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Positioning masking		Spacing	13 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Positioning masking		Spacing	12 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
