WM, 50551935 Removing And Installing Wing: Notes

TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

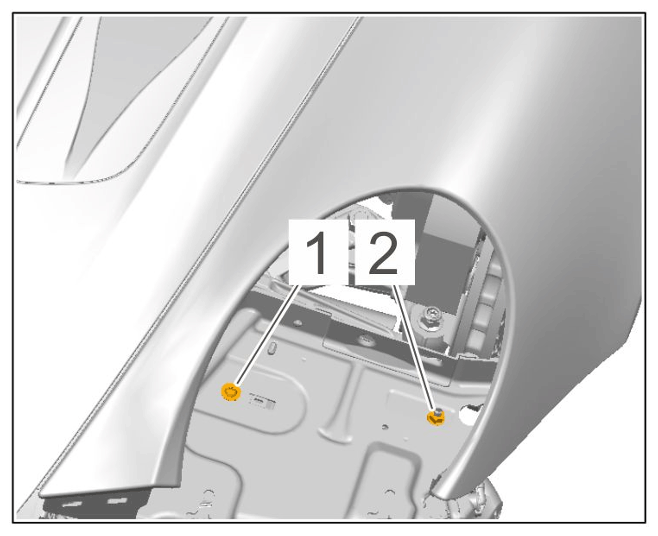

Screw for wing retainer plate at headlight mounting point	Item 1	Tightening torque	5.5 N.m (4 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw
Nut for wing retainer plate at headlight mounting point	Item 2	Tightening torque	9.7 N.m (7.5 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw

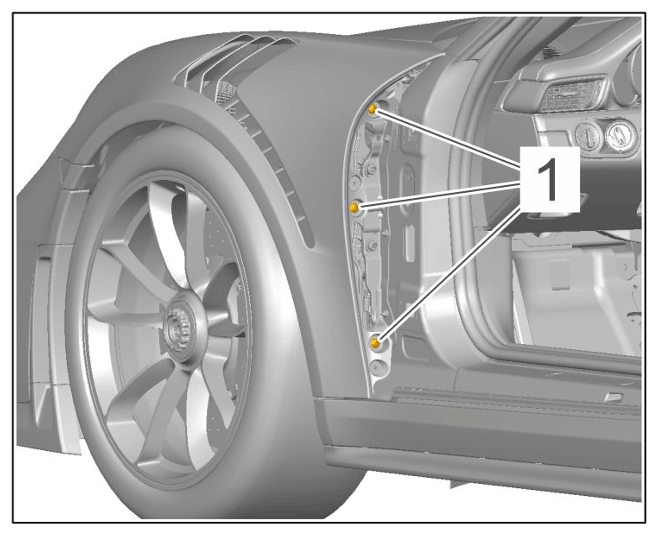

Screws securing wing to retaining frame	Item 1	Tightening torque	5.5 N.m (4 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screws, rear

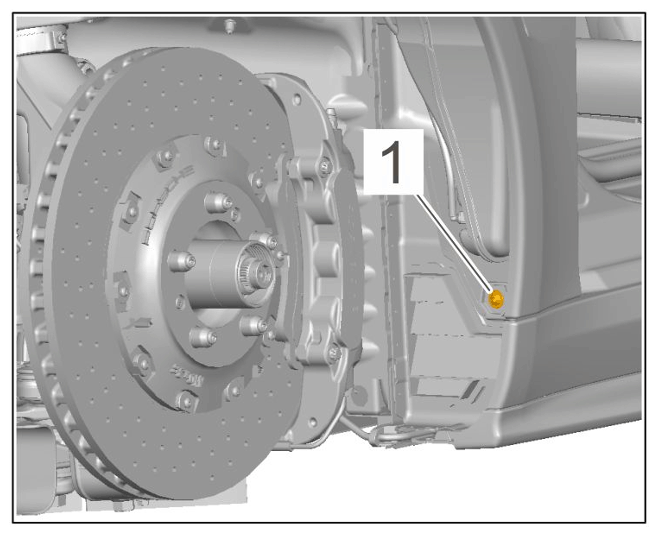

Wing screw, bottom	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw
