WM, 505519 Removing And Installing Wing: Notes
TECHNICAL VALUES SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screws securing wing to body | Tightening torque | 9.7 N.m (7.5 ft.lb) | +/- 0.9 N.m (0.5 ft.lb) | ||
|

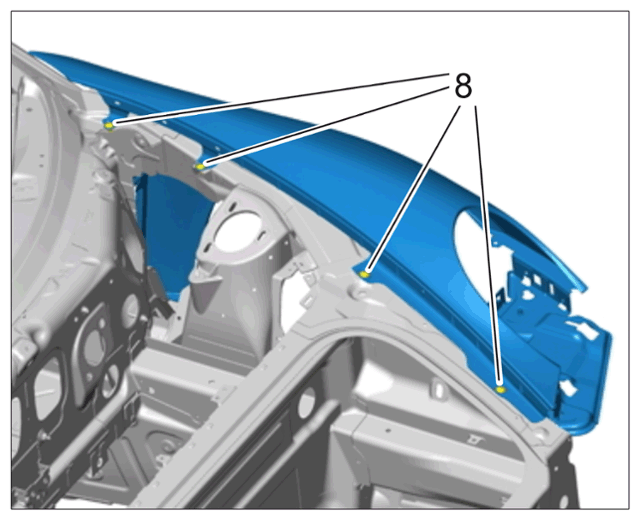

Releasing top of wing |
|||||
| Fastening nuts/screws securing bracket to body | Tightening torque | 9.7 N.m (7.5 ft.lb) | +/- 0.9 N.m (0.5 ft.lb) | ||
|

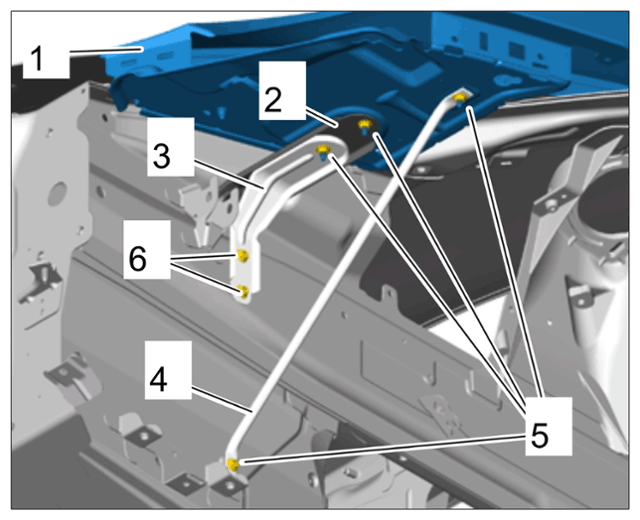

Releasing bottom of wing |
