Installing Front Wheel Housing

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

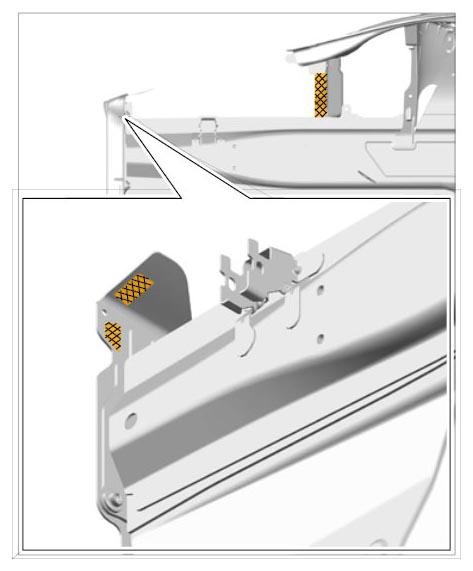

   Fig 1: Identifying Front Wheel Housing Adhesive Applying Area (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

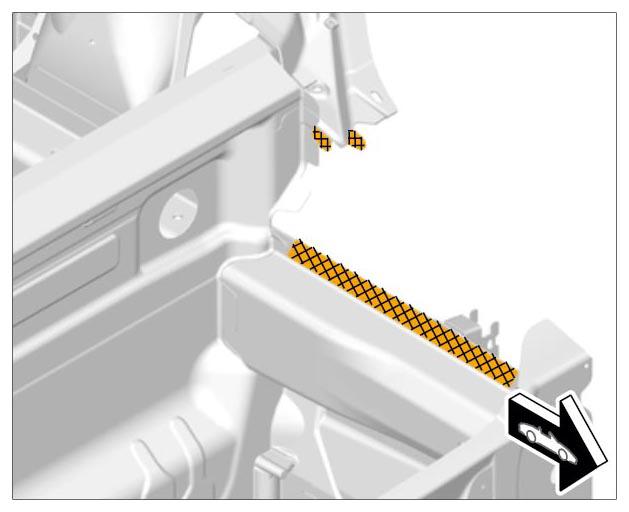

   Fig 2: Identifying Front Wheel Housing Adhesive Applying Area (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Rivet in front wheel housing.
   1. 2.1. Rivet in front wheel housing in area -1-  → BLIND RIVET 999.190.227.01.
   2. 2.2. Rivet in front wheel housing in area -2-  → BLIND RIVET 999.190.230.01.

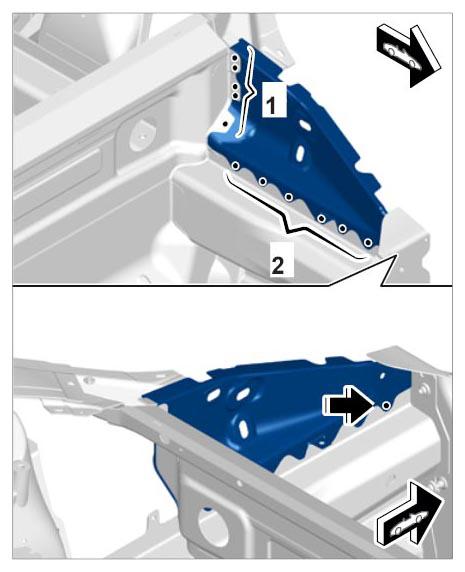

      Fig 3: Removing Front Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Rivet in front wheel housing. → BLIND RIVET 999.190.227.01

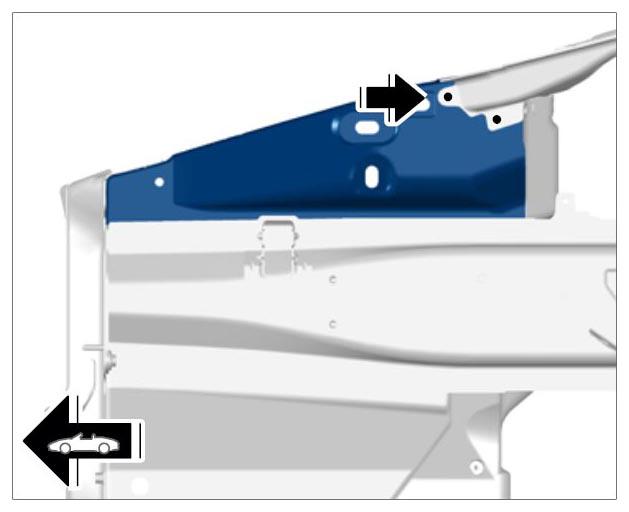

   Fig 4: Locating Front Wheel Housing Rivet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Rivet in front wheel housing. → BLIND RIVET 999.190.227.01

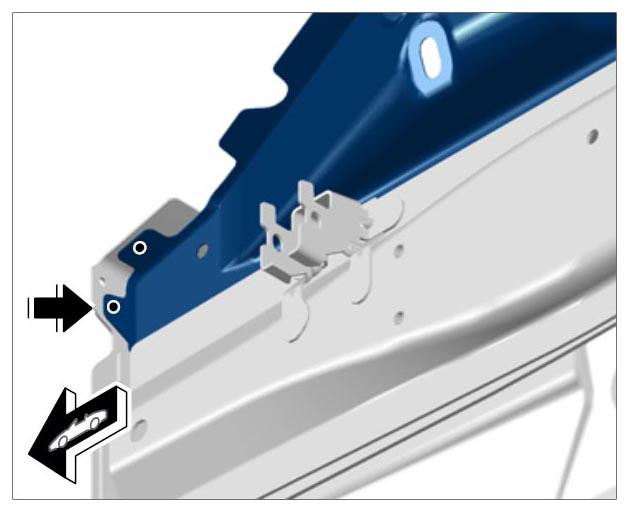

   Fig 5: Locating Front Wheel Housing Rivets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
