Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

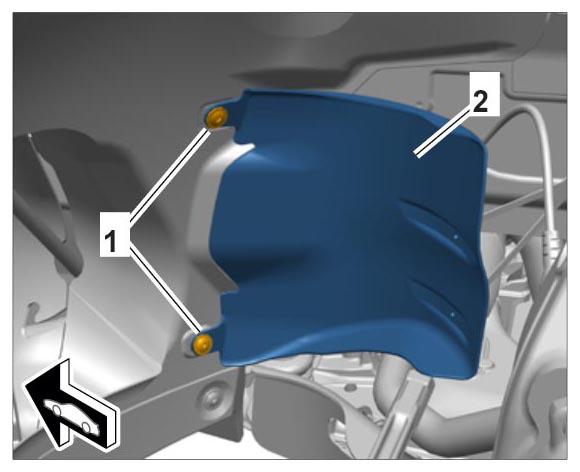

| Fastening screw securing air vane to body | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Removing air vane |
|||||

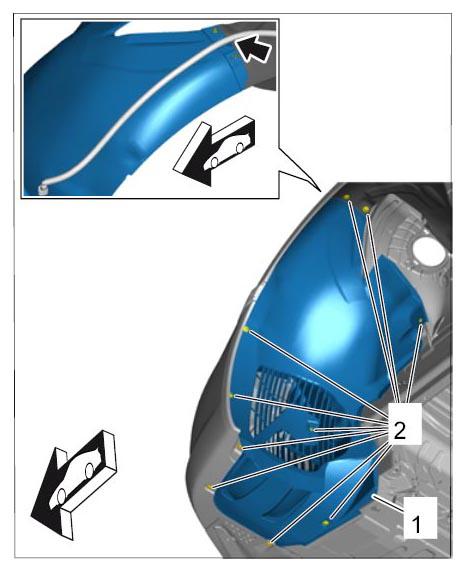

| Fastening screw securing front part of wheel housing liner to body | Item 2 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Removing front part of front wheel housing liner |
|||||
| Fastening screw securing rear part of wheel housing liner to body | Item 2 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Removing rear part of front wheel housing liner |
|||||

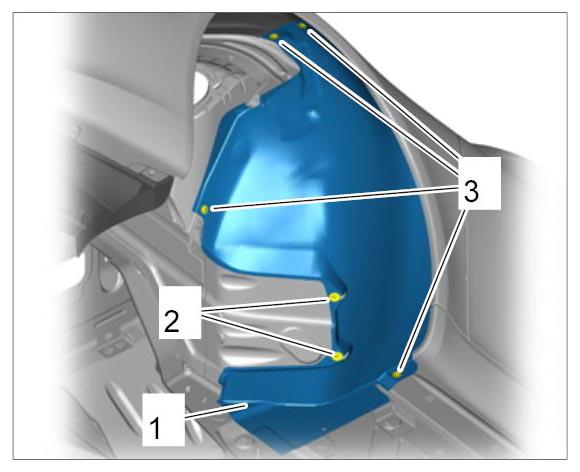

| Fastening nuts securing wheel housing liner to body | Item 3 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Removing rear part of front wheel housing liner |
|||||
