Removing Front Wheel Housing Liner - Rear Section

Fig 1: Identifying Front Wheel Housing Liner Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove air vane (GT3 only):

1. Turn front wheels out fully.
2. Unscrew fastening screws -1-  .
3. Remove air vane -2-  .

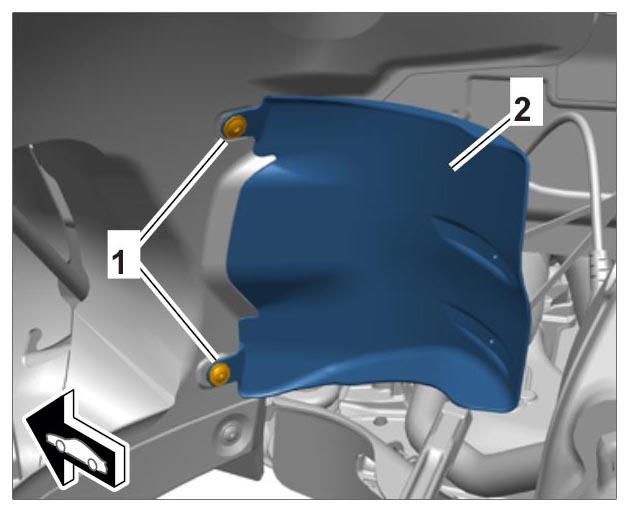

   Fig 2: Identifying Air Vane With Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Remove steering spoiler (GT3 only):

4. Open fastening clips for the steering spoiler -1-  on the wishbone.
5. Unclip and remove steering spoiler -1-  from the wishbone.
   Fig 3: Identifying Steering Spoiler On Wishbone

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Unscrew fastening nuts -2-  and fastening screws -3-  .

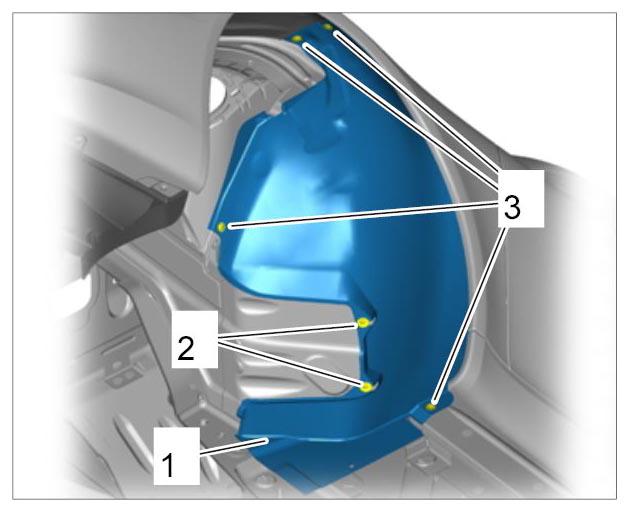

   Fig 4: Identifying Front Wheel Housing Liner With Fastening Nuts And Screws - Rear Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove wheel housing liner -1-  .
