Removing Front Wheel Housing Liner - Front Section

  1. Unscrew fastening screws -2-  .
  2. Remove wheel housing liner -1-  .

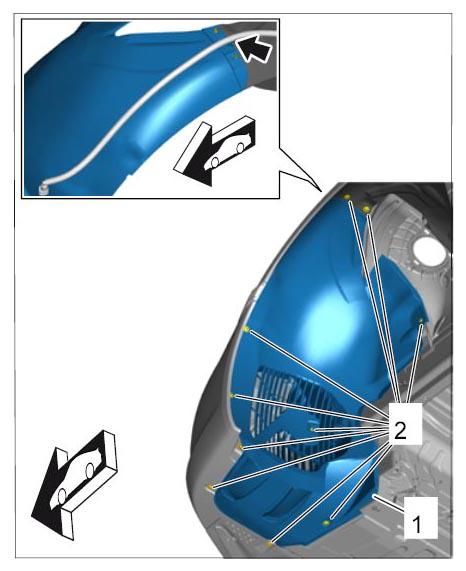

    Fig 1: Identifying Front Wheel Housing Liner With Fastening Nuts And Screws - Front Section
    G10005295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
