WM 505519 Removing And Installing Wing (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Removing Wing
>>
Releasing Top Of Wing
Releasing Top Of Wing
Unscrew fastening screws
-8-
at the top flange.

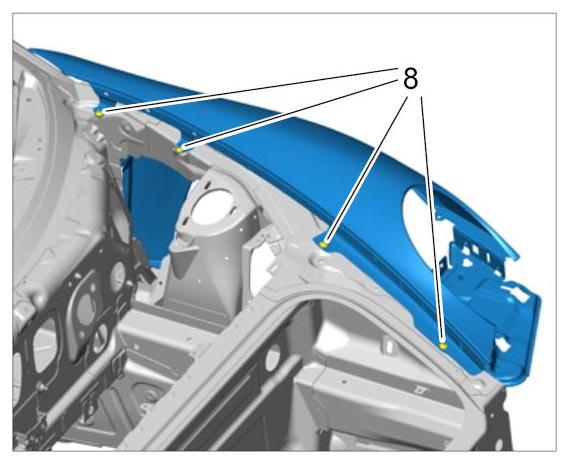

Fig 1: Identifying Top Flange Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
