Preparing Luggage Compartment Bracket For Installation

Fit luggage compartment bracket and secure it to the body.
1. 1.1. Drill bores for the rivets through the existing holes. → Diameter: 6.5 mm
Drill new holes in the areas shown. → Diameter: 6.5 mm

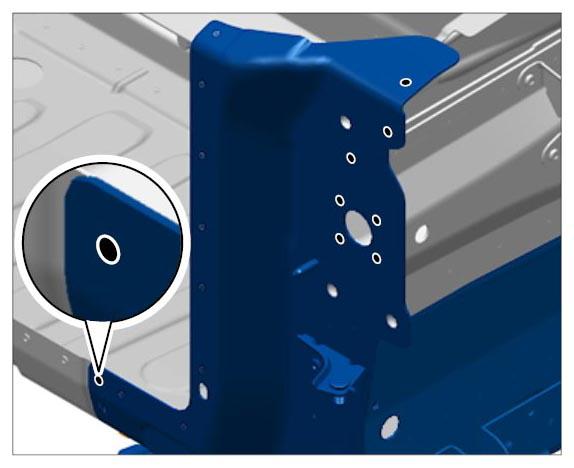

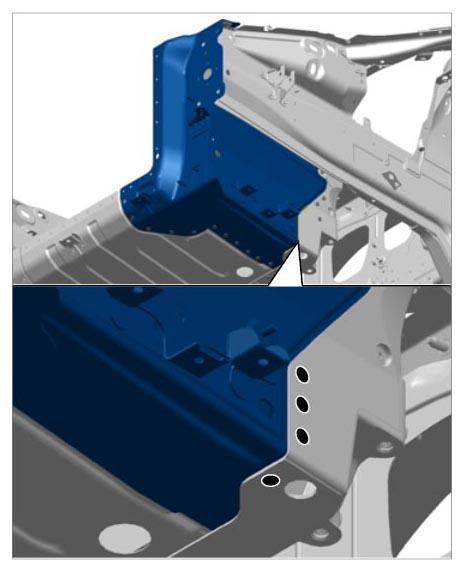

Fig 1: Locating Luggage Compartment Bracket Drilling Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

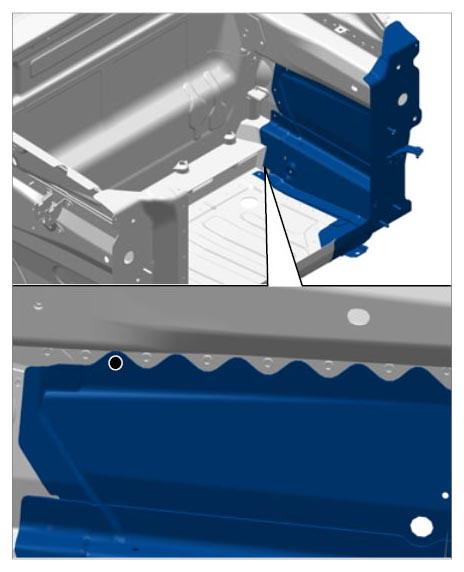

Fig 2: Identifying Luggage Compartment Bracket Drilling Holes (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

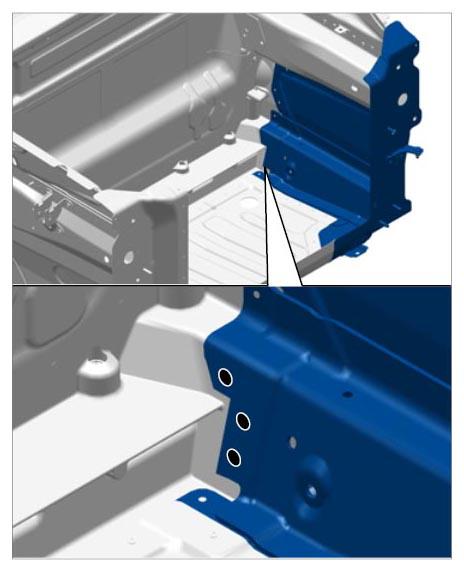

Fig 3: Identifying Luggage Compartment Bracket Drilling Holes (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 4: Identifying Luggage Compartment Bracket Drilling Holes (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Countersink the bores shown for installing countersunk rivets. Countersink Nr.202

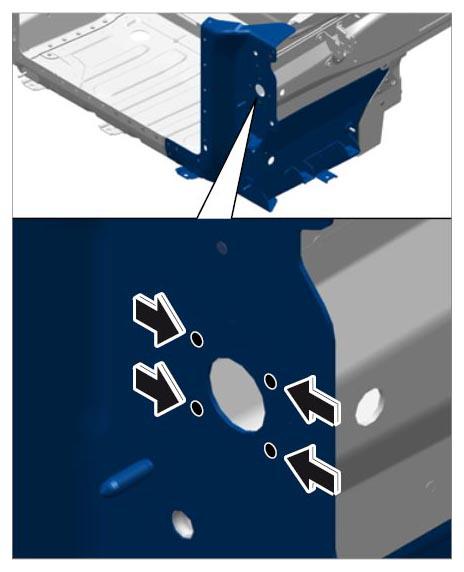

Fig 5: Identifying Luggage Compartment Bracket Counterbores
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove luggage compartment bracket.
De-burr the bores.
Prepare connection areas for bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")

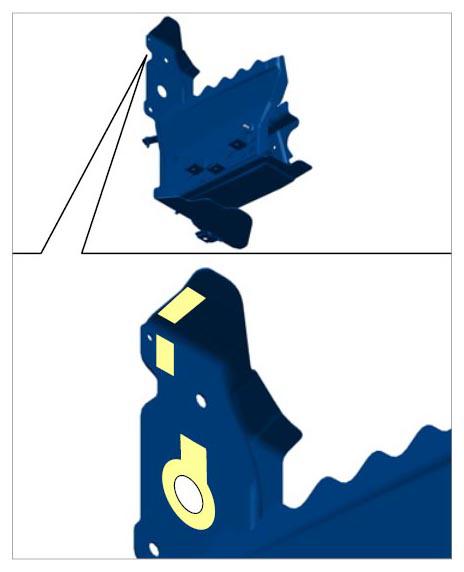

Fig 6: Identifying Luggage Compartment Bracket Bonding Areas (1 Of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

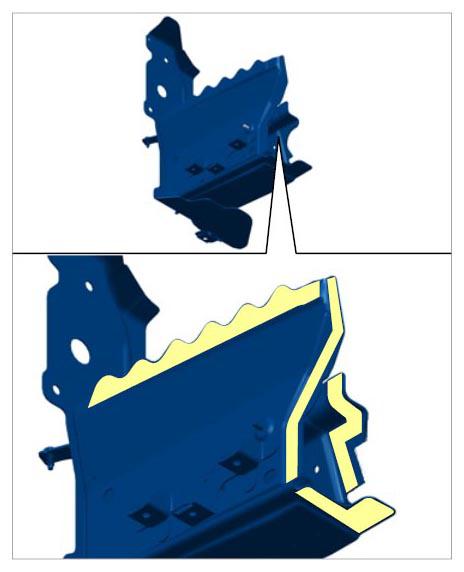

Fig 7: Identifying Luggage Compartment Bracket Bonding Areas (2 Of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

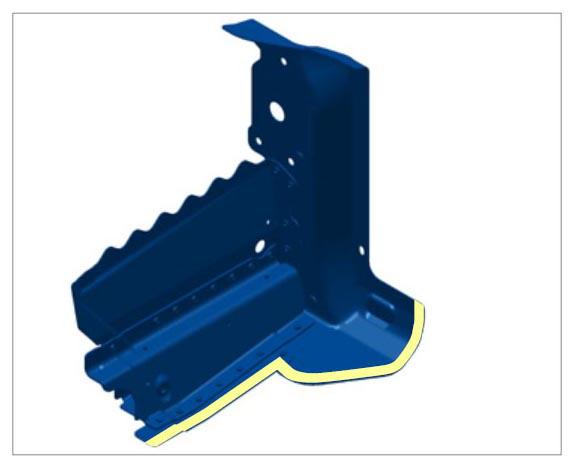

Fig 8: Identifying Luggage Compartment Bracket Bonding Areas (3 Of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

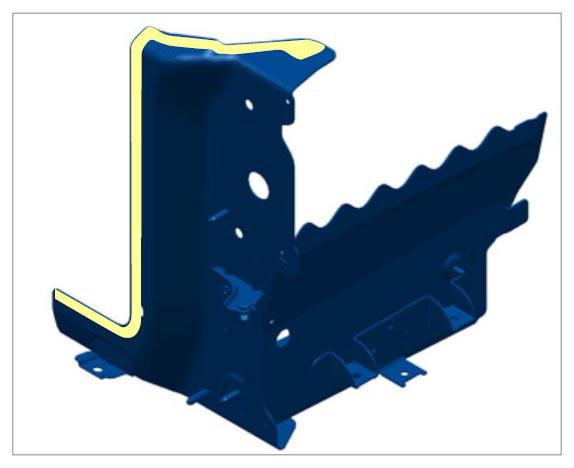

Fig 9: Identifying Luggage Compartment Bracket Bonding Areas (4 Of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
