Installing Luggage Compartment Bracket

Apply adhesive. → Application depth: 5 mm

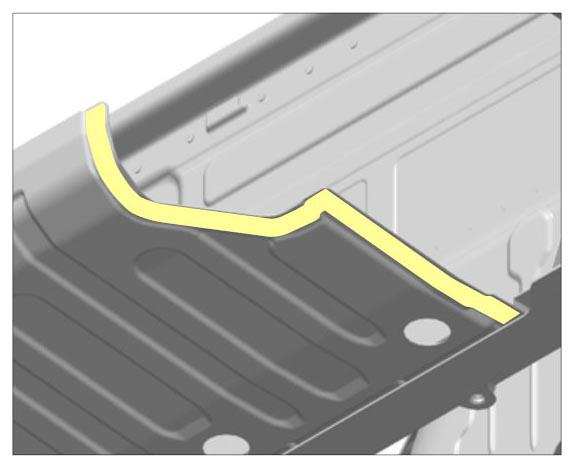

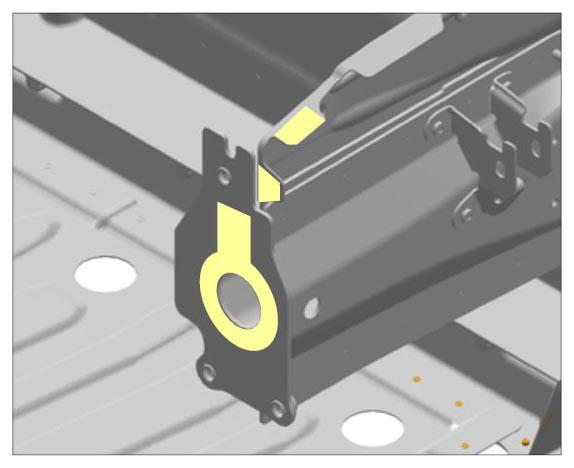

Fig 1: Identifying Luggage Compartment Bracket Adhesive Applying Area (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

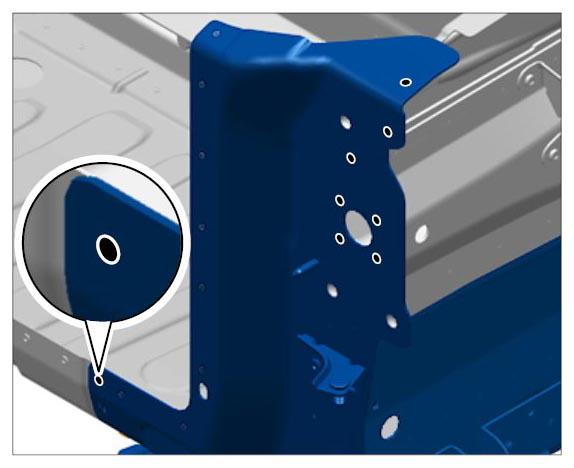

Fig 2: Identifying Luggage Compartment Bracket Adhesive Applying Area (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

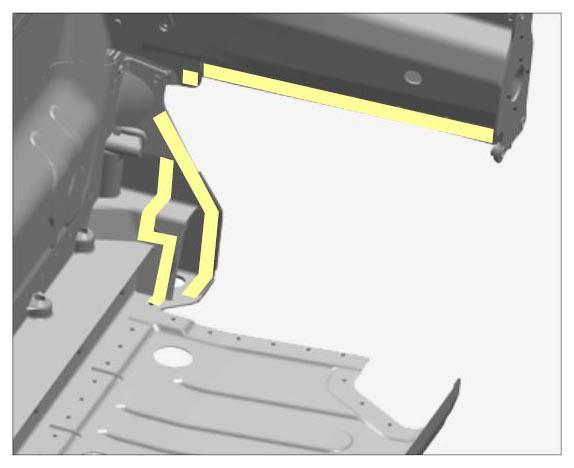

Fig 3: Identifying Luggage Compartment Bracket Adhesive Applying Area (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit luggage compartment bracket.
Rivet in luggage compartment bracket.
1. 3.1. Rivet in areas shown using → BLIND RIVET 999.190.228.01.

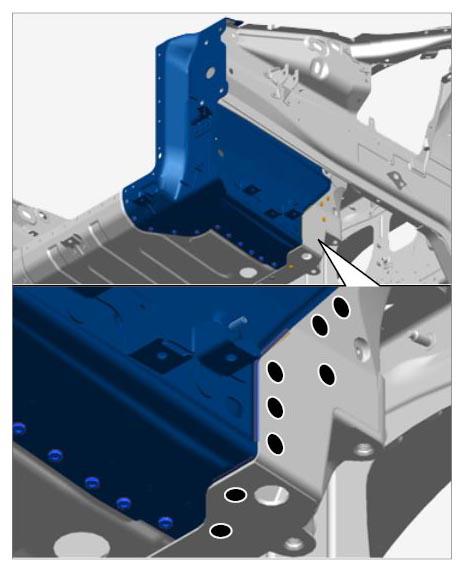

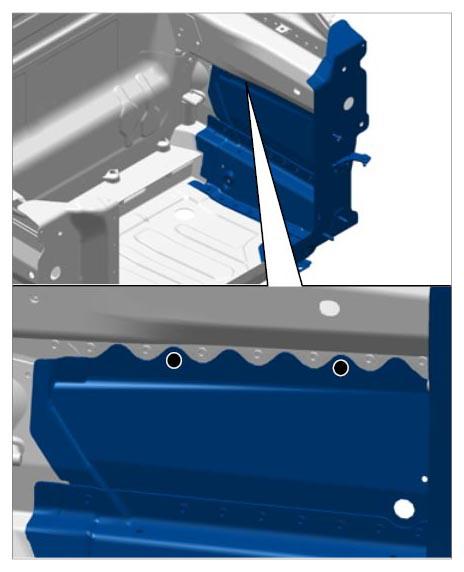

  Fig 4: Identifying Luggage Compartment Bracket Counterbores Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Rivet in areas shown using → BLIND RIVET 999.190.230.01.

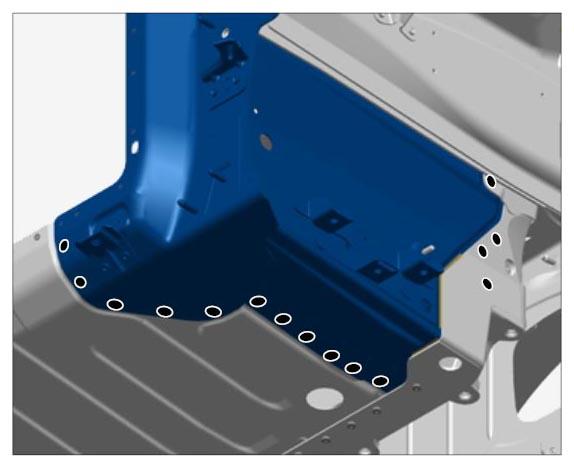

  Fig 5: Identifying Luggage Compartment Bracket Rivet Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Rivet in areas shown using → BLIND RIVET 999.190.227.01.

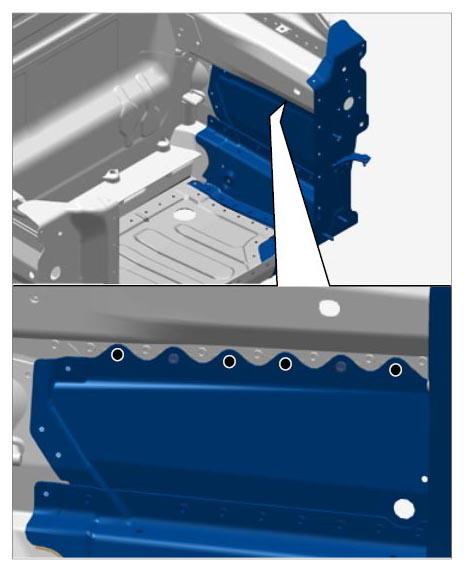

  Fig 6: Identifying Luggage Compartment Bracket Rivet Area (1 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

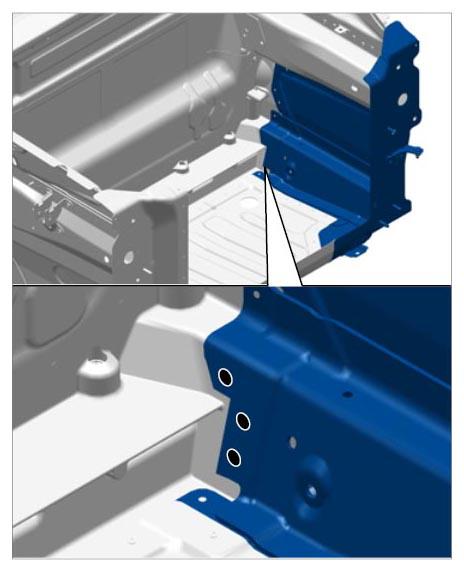

  Fig 7: Identifying Luggage Compartment Bracket Rivet Area (2 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

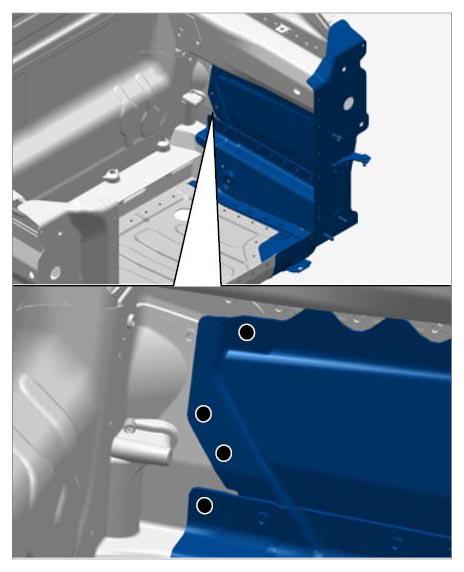

  Fig 8: Identifying Luggage Compartment Bracket Rivet Area (3 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Rivet in areas shown using → BLIND RIVET 999.190.229.01.

  Fig 9: Identifying Luggage Compartment Bracket Rivet Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make ground connections.
1. 4.1. Drill bores for ground connections. → Diameter: 8.2 mm

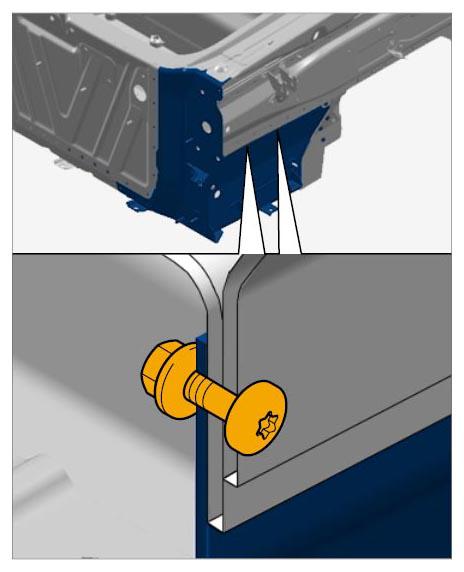

  Fig 10: Identifying Screw-On Points For Ground Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Make ground connection using a screw and nut.
  → WM 5X00IN MAKING GROUND CONNECTIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")→ Tightening torque: 15 Nm (11 ftlb.)

  Fig 11: Identifying Ground Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Carefully seal screw heads and nuts.
Install front closing panel. →
