WM 501055 Replacing Front Closing Panel (Except CARRERA, CARRERA S, 50 JAHRE 911, CARRERA GTS, CARRERA "Edition", CARR. CABRIO, CARR. S CABRIO, CARRERA GTS CABRIO, CARRERA Cabriolet "Edition", CARRERA 4 "Edition", Turbo CABRIO, Gt3)
>>
Preparing Connection Areas Of Body For Installing Closing Panel
Preparing Connection Areas Of Body For Installing Closing Panel
Prepare connection areas for bonding.

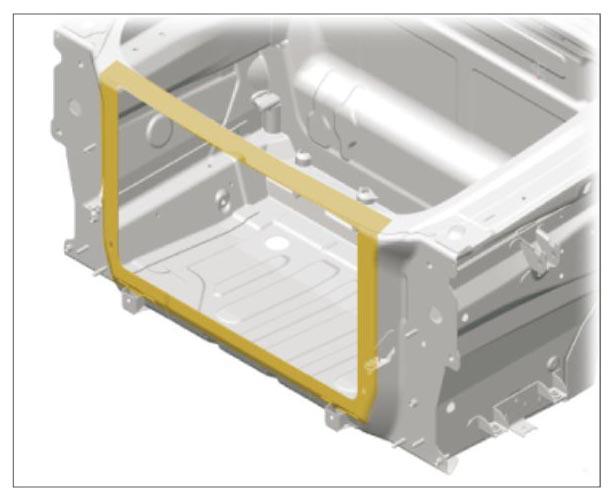

Fig 1: Identifying Connection Areas For Bonding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
