50 - Body Front - 911 CARRERA (991)
>>
WM 501055 Replacing Front Closing Panel (Except CARRERA, CARRERA S, 50 JAHRE 911, CARRERA GTS, CARRERA "Edition", CARR. CABRIO, CARR. S CABRIO, CARRERA GTS CABRIO, CARRERA Cabriolet "Edition", CARRERA 4 "Edition", Turbo CABRIO, Gt3)
>>
Information On Multi-Section Closing Panel
Information On Multi-Section Closing Panel
The closing panel comprises several sections. The sections can be replaced individually.

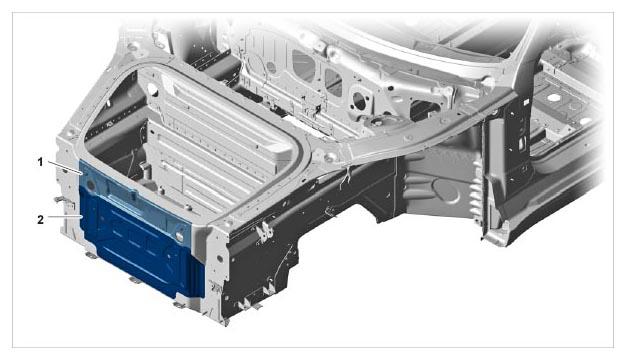

Fig 1: Identifying Multi-Section Closing Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
