Removing Control Unit For Rear-End Electronics (Cabriolet)

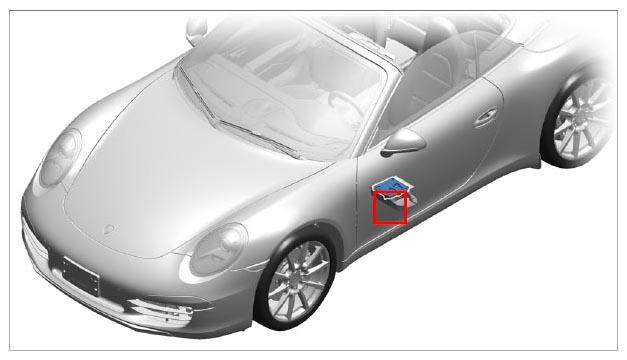

Fig 1: Identifying Control Unit For Rear-End Electronics

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

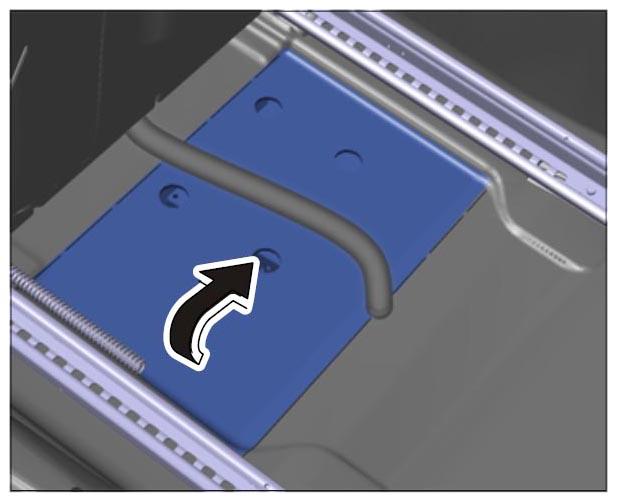

1. Fold carpet up -arrow-  .
   Fig 2: Detaching Carpet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

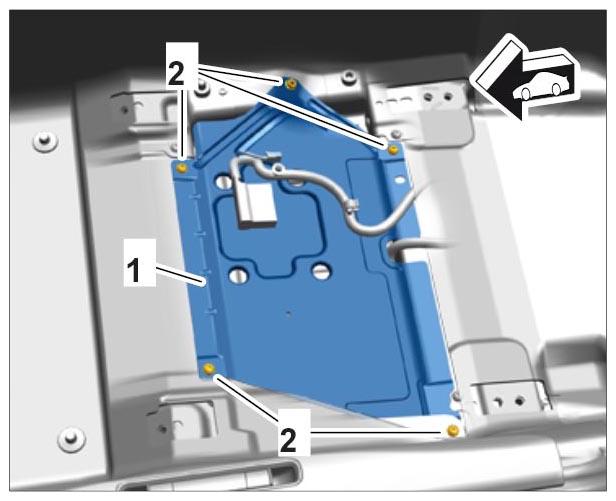

2. Loosen screws -2-  on the reinforcement plate and remove reinforcement plate -1-  .
   Fig 3: Removing Reinforcement Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

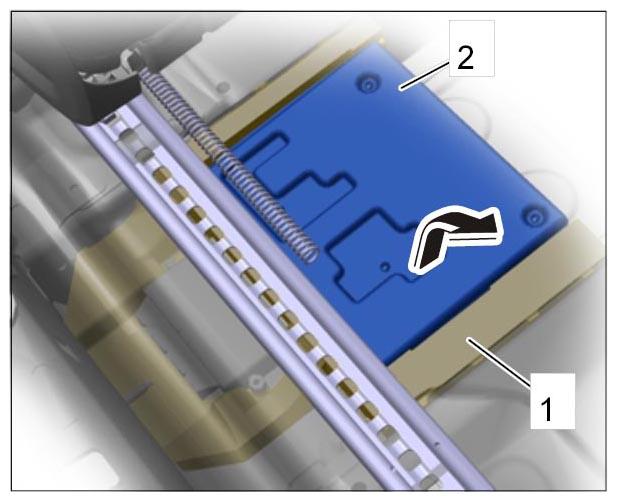

3. Remove control unit -2-  from the foam holder -1-  and turn it -arrow-  until the plug connections are accessible.
   Fig 4: Removing Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The number of plug connections can vary, depending on equipment.

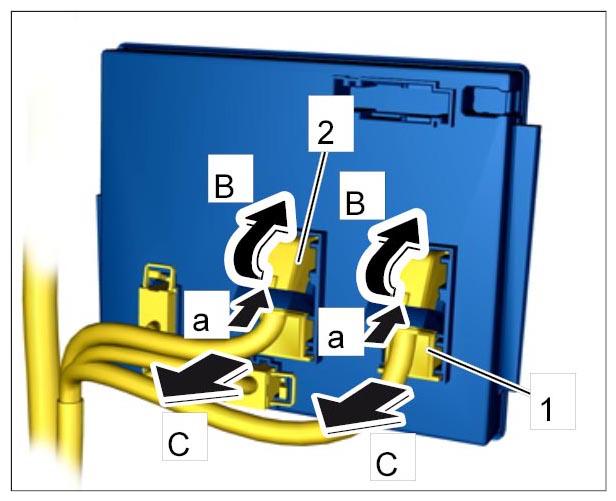

4. Release electric plug connection -1-  by pressing the locking mechanism -2-  (-arrows a-  ) and sliding the clip down -arrows B-  and pull off the connector -arrow C-  .
   Fig 5: Pulling Off Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

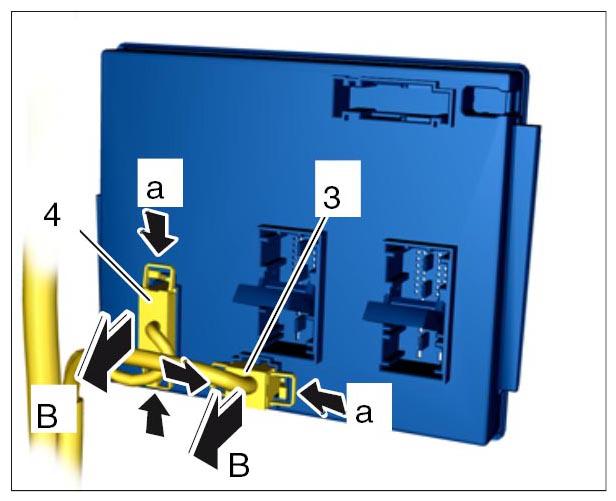

5. Release electric plug connections -3, 4-  on both sides -arrows a-  and pull them off -arrows B-  .
   Fig 6: Pulling Off Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
