Installing Control Unit For Rear-End Electronics (Except Cabriolet)

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

1. Plug in electric plug connections -3 & 4-  until they engage securely -arrows B-  .

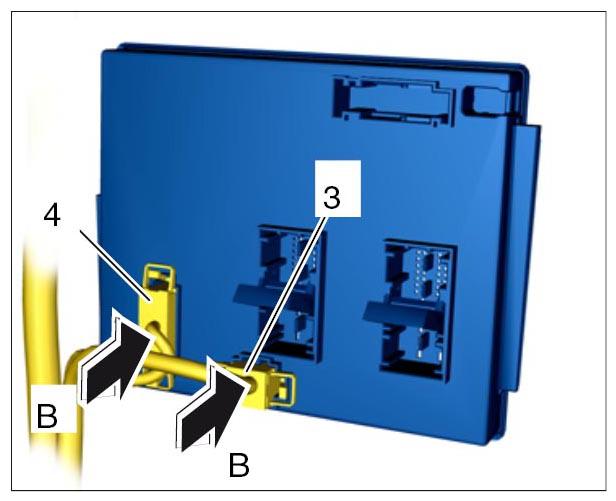

   Fig 1: Inserting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Plug in electric plug connections -1 & 2-  (-arrows B-  ) and lock them -arrows a-  . To do this, slide the clip up until it engages securely.

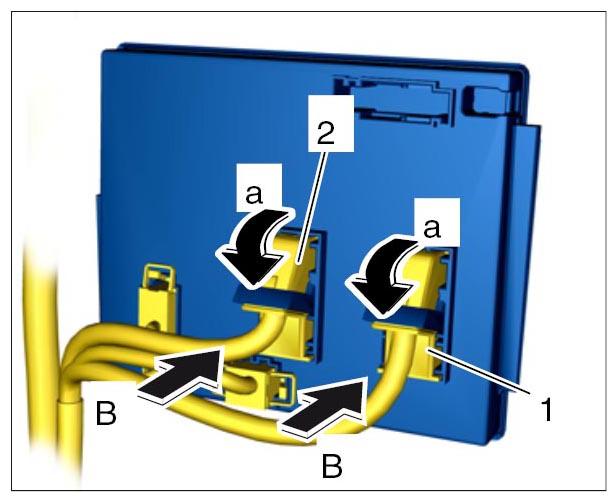

   Fig 2: Inserting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Push -2-  control unit -1-  into the foam holder -arrow-  and align.

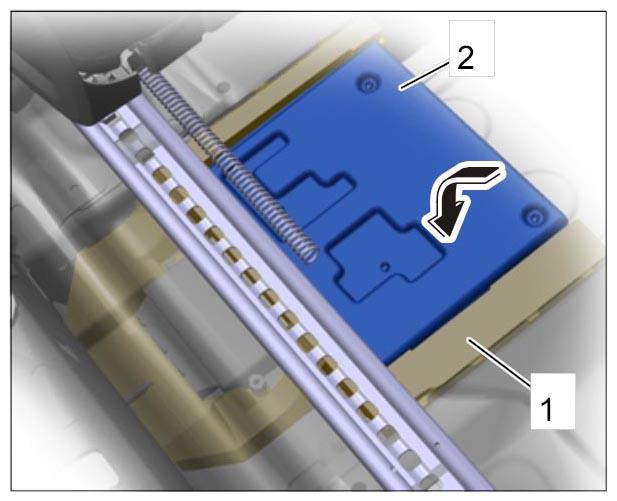

   Fig 3: Installing Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fold carpet down -arrow-  and align.

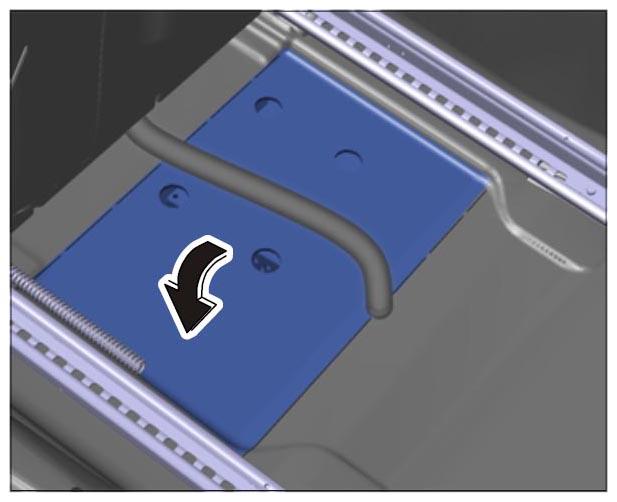

   Fig 4: Aligning Carpet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Move front seat into initial position.
