Installing Control Unit For Rear-End Electronics (Cabriolet)

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

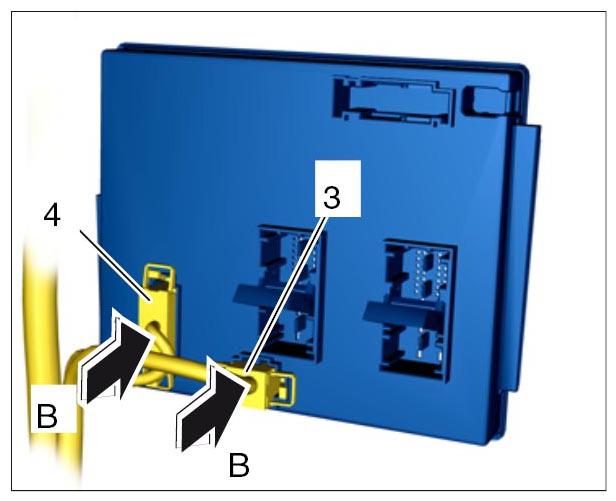

1. Plug in electric plug connections -3 & 4-  until they engage securely -arrows B-  .
   Fig 1: Installing Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

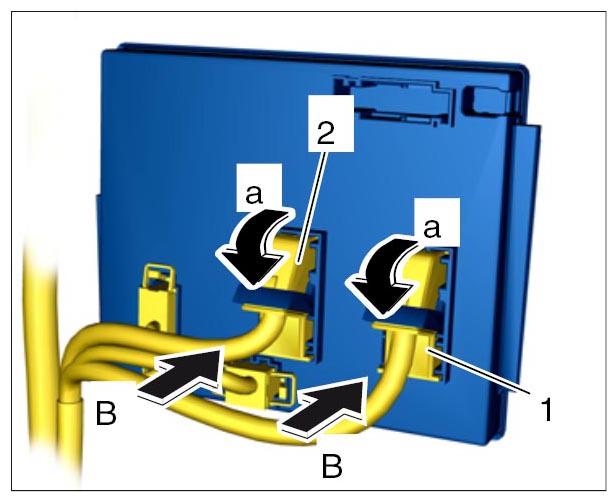

2. Plug in -1, 2-  electric plug connections -arrows B-  and lock them -arrows a-  . To do this, slide the clip up until it engages securely.
   Fig 2: Installing Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

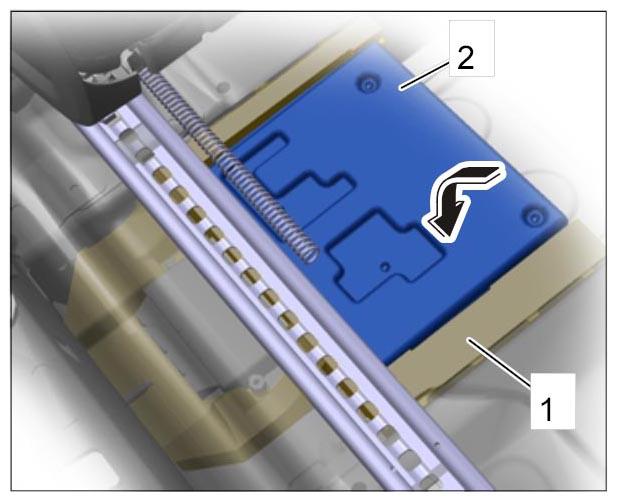

3. Press control unit -2-  into the foam holder -1-  (-arrow-  ) and align it.
   Fig 3: Installing Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

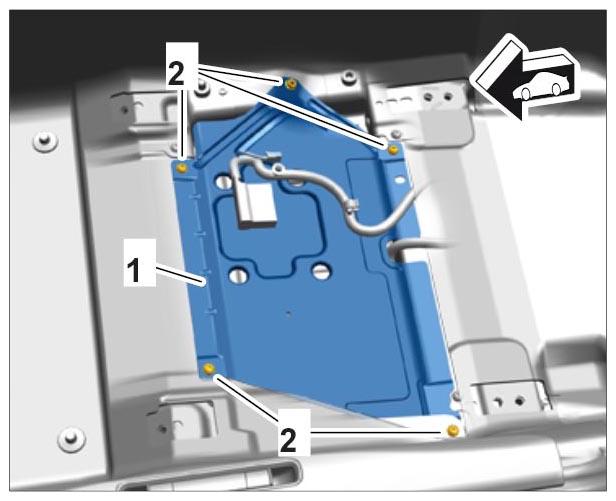

4. Fit reinforcement plate -1-  and secure with screws -2-  .
   Fig 4: Installing Reinforcement Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

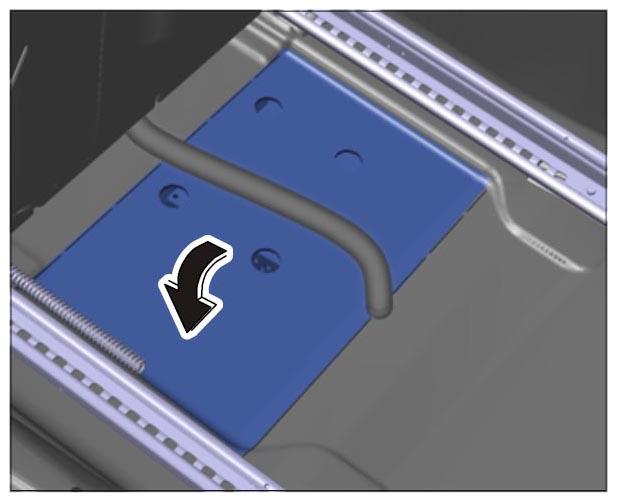

5. Fold carpet down -arrow-  and align it.
   Fig 5: Aligning Carpet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
