Removing Front Door Control Unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

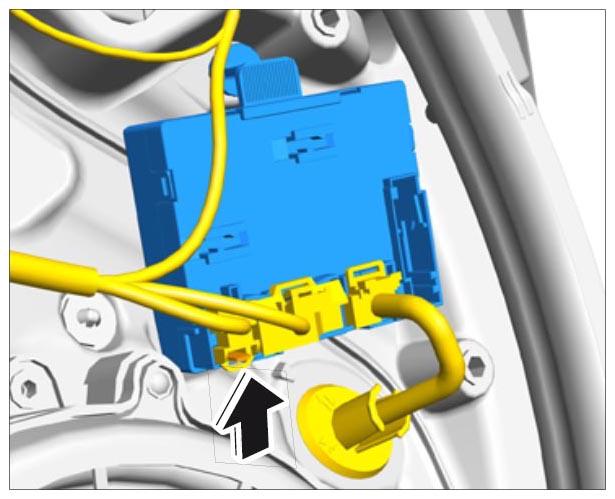

1. Release -arrow-  electric plug connection and unplug the connector.
   Fig 1: Removing Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

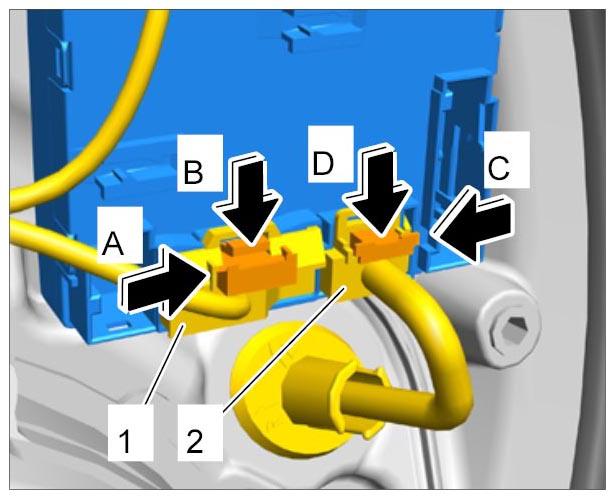

2. Pull out unlocking protection on the electric plug connection -1-  (-A-  ), release connector -B-  and unplug it.
   1. 2.1. Pull out unlocking protection on the electric plug connection -2-  (-C-  ), release connector -D-  and unplug it.
      Fig 2: Disconnecting Plug Connection

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

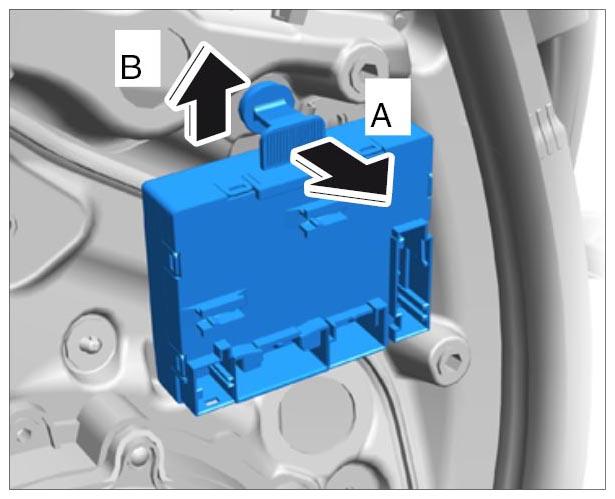

3. Unclip door control unit -A-  and remove it -B-  .
   Fig 3: Removing Door Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
