Installing Front Door Control Unit

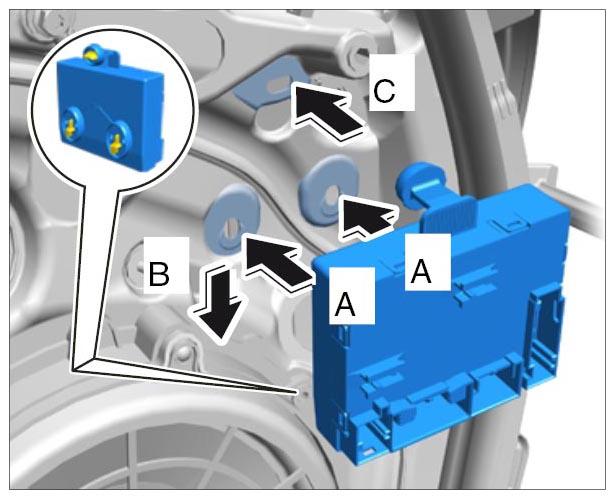

Fit door control unit -A- , slide it down -B- and clip it in -C- .

Fig 1: Fitting Door Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

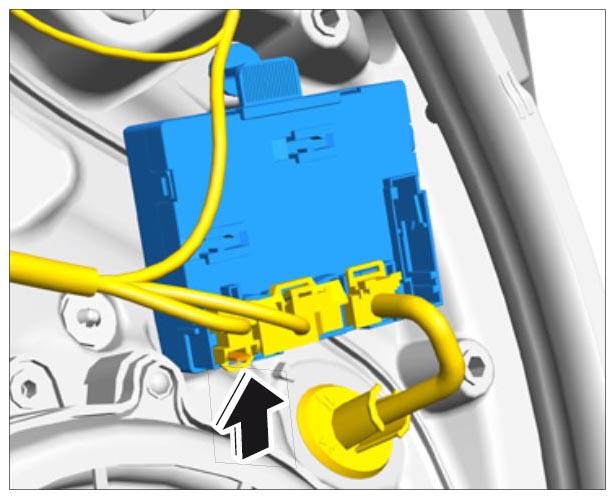

Plug in electric plug connection until the connector locks securely -arrow- .

Fig 2: Locating Plug In Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

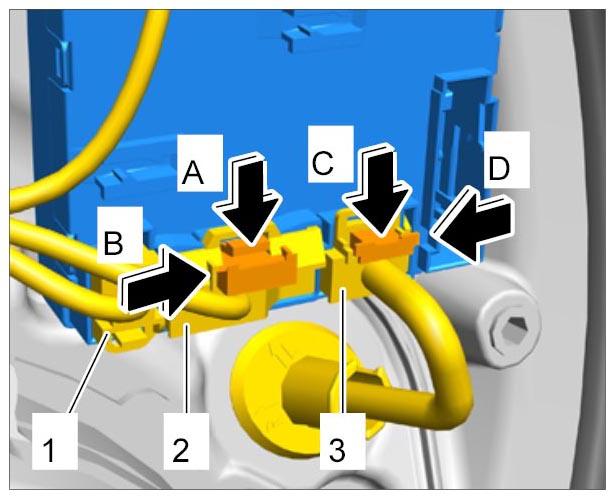

Connect electric plug connection -2- until the connector clicks into place -A- and slide in unlocking protection -B- until it locks securely.
1. 3.1. Connect electric plug connection -3- until the connector clicks into place -C- and slide in unlocking protection -D- until it locks securely.
Fig 3: Installing Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
