Home >> Porsche >> 2016 >> 911 Turbo, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Door Locks >> 57 - Front Door, Central Locking -- 911 CARRERA (991) >> WM 575919 Removing And Installing Door Arrester (All Models) >> Technical Values

Technical Values

Location Description Type Basic Value Tolerance 1 Tolerance 2
Fastening Screw Securing Door Arrester To Body   Tightening Torque 35 Nm (26 ft. lbs.)

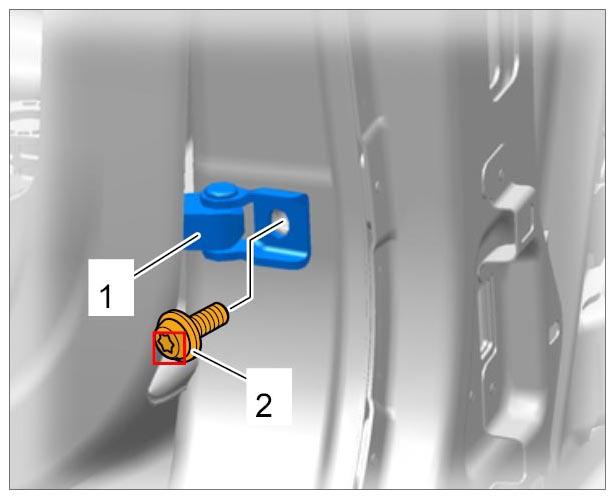

G09994092

Loosening Door Arrester On Body Side
Fastening Nut Securing Door Arrester To Door   Tightening Torque 10 Nm (7.5 ft. lbs.)

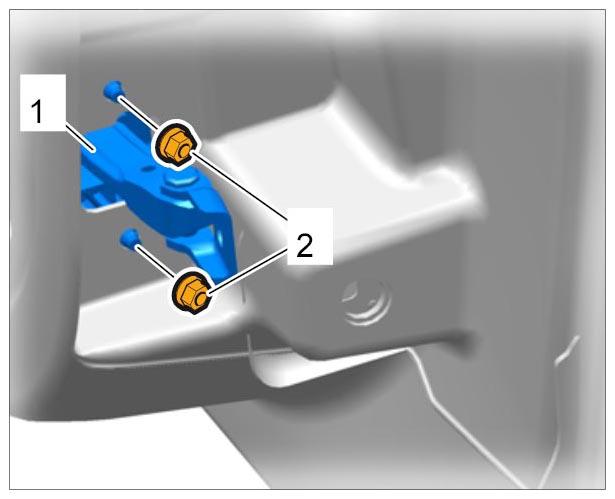

G09994093

Removing Door Arrester
