Installing Front Door Hinge
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.
→ Observe specified tightening torques.
→ Carry out a visual inspection of all re-used parts.
Information
- Some of the repair illustrations show only one side of the vehicle.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

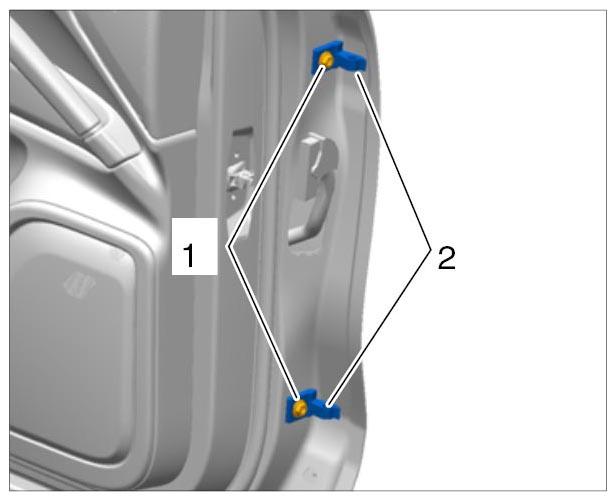

- Tighten fastening screws -1-
on both door hinges -2-
to the specified tightening torque. Tightening Torque 40 Nm (30 ft. lbs.)
The hinges can be set at roughly the correct position during installation by positioning them on the existing indents.
