Disassembling Front Door

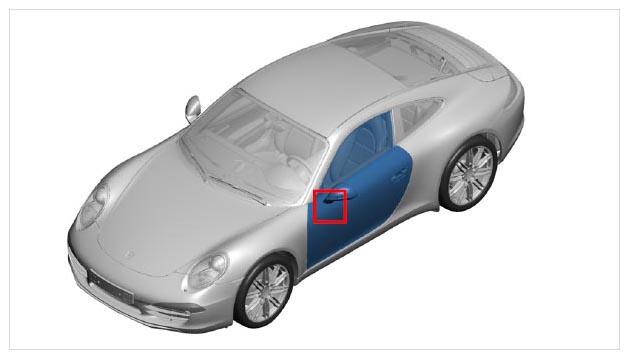

Fig 1: Identifying Front Door
G09994073Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove front door sub-frame. → 573019 REMOVING AND INSTALLING FRONT DOOR SUB-FRAME  - section on "Removing"
  2. Remove front window shaft seal. → 644819 REMOVING AND INSTALLING FRONT WINDOW CHANNEL SEAL - section on "Removing"
  3. Remove the front door window. → 644019 REMOVING AND INSTALLING FRONT DOOR WINDOW - section on "Removing"
  4. Remove the front power windows. → 645219 REMOVING AND INSTALLING THE FRONT POWER WINDOWS - section on "Removing"
  5. Remove rear-view mirror. → 668919 REMOVING AND INSTALLING REAR-VIEW MIRROR - section on "Removing"
  6. Remove door lock. → 571719 REMOVING AND INSTALLING DOOR LOCK  - section on "Removing"
  7. Remove front door handle. → 571119 REMOVING AND INSTALLING FRONT DOOR HANDLE  - section on "Removing"
  8. Remove front door arrester. → 575919 REMOVING AND INSTALLING FRONT DOOR ARRESTER  - section on "Removing"
  9. Remove the rubber door seal. → 576519 REMOVING AND INSTALLING THE OUTER RUBBER SEAL FOR THE FRONT DOOR  - section on "Removing"

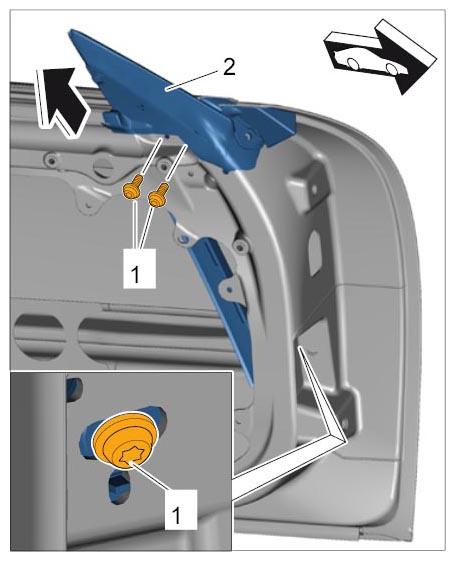

  10. Remove the door window guide.
    1. 10.1. Unscrew the fastening screws -1-  at the top and bottom.
    2. 10.2. Lift and remove the window guide -2- -arrow-  .
    Fig 2: Removing Window Guide
    G09994074Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Remove front door. → 575119 REMOVING AND INSTALLING FRONT DOOR  - section on "Removing"
  12. Remove the front door hinge. → 575319 REMOVING AND INSTALLING THE FRONT DOOR HINGE  - section on "Removing"
