Assembling Front Door

  1. Install the front door hinge. → 575319 REMOVING AND INSTALLING THE FRONT DOOR HINGE  - section on "Installing"
  2. Install front door. → 575119 REMOVING AND INSTALLING FRONT DOOR  - section on "Installing"
  3. Install the window guide.
    1. 3.1. Insert the window guide -2- -arrow A-  .
    2. 3.2. Align the window guide (seal) and press it into the door -arrow B-  .
    3. 3.3. Secure the window guide -2-  at the top and bottom using the fastening screws -1-  . → Tightening torque: 9.7 Nm

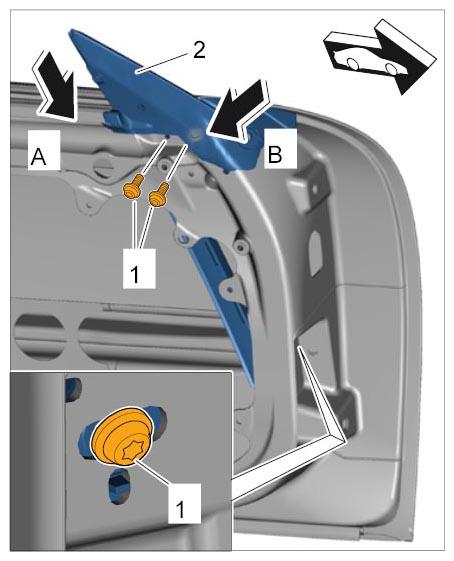

      Fig 1: Installing Window Guide
      G09994075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Make sure that the water drain is positioned correctly -arrow-  .

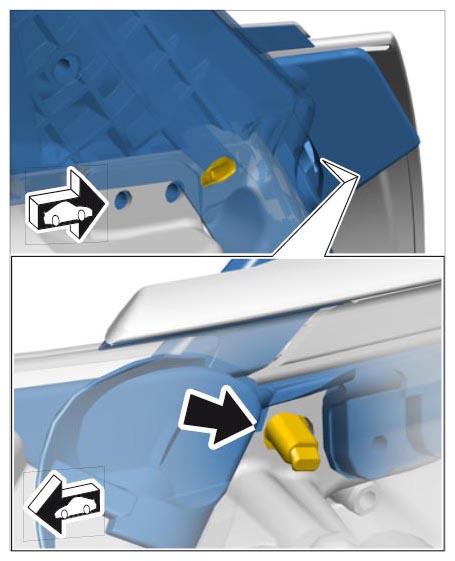

      Fig 2: Locating Window Guide Water Drain
      G09994076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install the rubber door seal. → 576519 REMOVING AND INSTALLING THE OUTER RUBBER SEAL FOR THE FRONT DOOR  - section on "Installing"
  5. Install front door arrester. → 575919 REMOVING AND INSTALLING FRONT DOOR ARRESTER  - section on "Installing"
  6. Install front door handle. → 571119 REMOVING AND INSTALLING FRONT DOOR HANDLE  - section on "Installing"
  7. Install front door lock. → 571719 REMOVING AND INSTALLING DOOR LOCK  - section on "Installing"
  8. Install rear-view mirror. → 668919 REMOVING AND INSTALLING REAR-VIEW MIRROR - section on "Installing"
  9. Install the front power windows. → 645219 REMOVING AND INSTALLING FRONT POWER WINDOWS - section on "Installing"
  10. Install front door window. → 644019 REMOVING AND INSTALLING FRONT DOOR WINDOW - section on "Installing"
  11. Install front window channel seal. → 644819 REMOVING AND INSTALLING FRONT WINDOW CHANNEL SEAL - section on "Installing"
  12. Install front door sub-frame. → 573019 REMOVING AND INSTALLING FRONT DOOR SUB-FRAME  - section on "Installing"
  13. Adjust the front door. → 575115 ADJUSTING FRONT DOOR  - section on "Adjusting"
