Removing Front Door

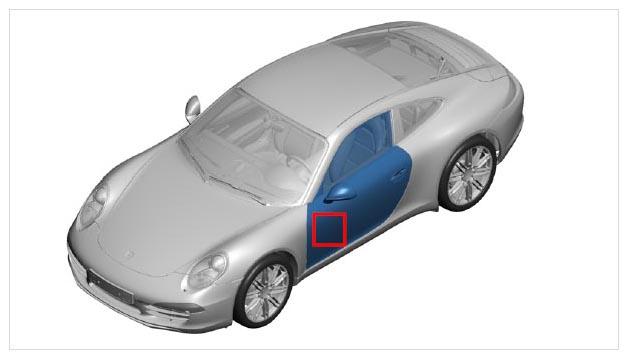

Fig 1: Identifying Front Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect plug connection for door.

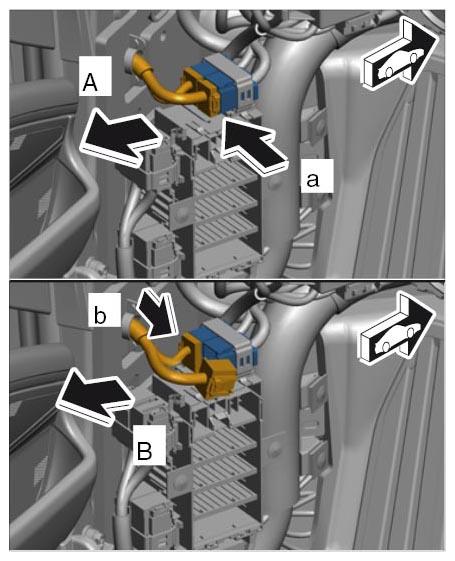

1. 1.1. Disconnect plug connection at the front -arrow a- and pull if off -arrow A- .
2. 1.2. Disconnect plug connection at the rear -arrow b- and pull if off -arrow B- .
Fig 2: Disconnecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

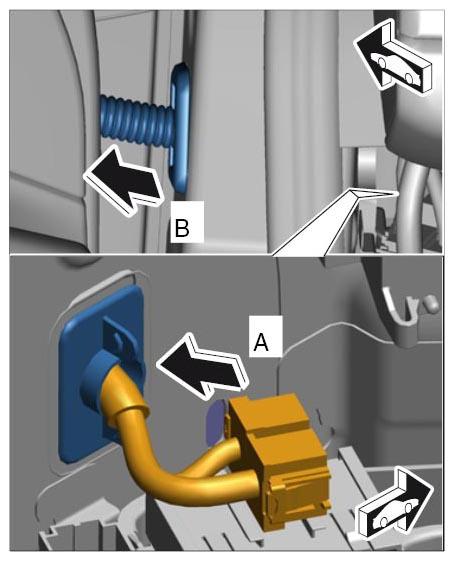

Remove rubber sleeve.
1. 2.1. Press inner rubber sleeve outwards -arrow A- .
2. 2.2. Pull out outer rubber sleeve -arrow B- .
3. 2.3. Carefully pull out wire harness for door.
Fig 3: Removing Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

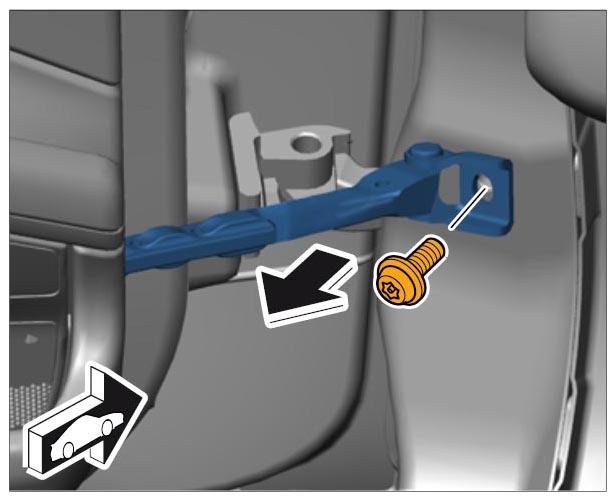

Unscrew fastening screw on door arrester at the body -arrow- .

Fig 4: Removing Door Arrester
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

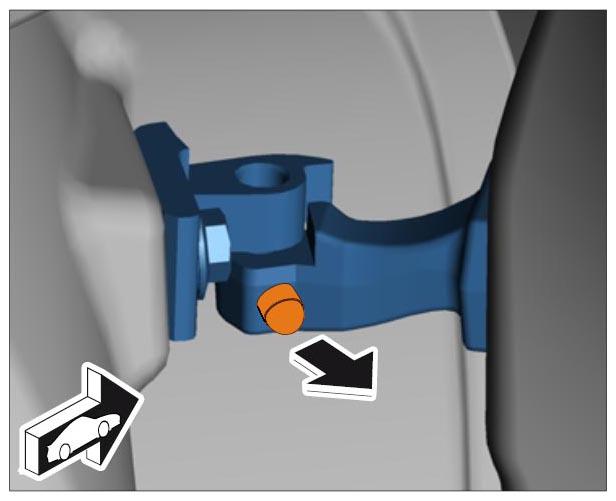

Pull plastic caps off the hinge screws at the top and bottom hinge joints -arrow- .

Fig 5: Pulling Off Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

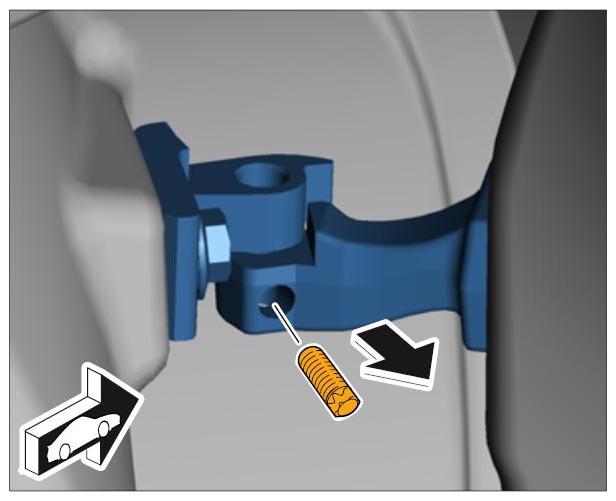

Unscrew fastening screws on the upper and lower hinge joint -arrow- .

Fig 6: Releasing Hinge Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

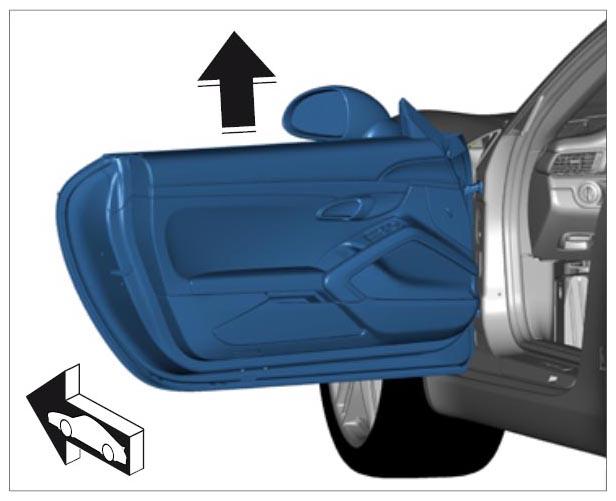

Get another person to hold the door.
Lift the door up slightly until the hinge bolts are removed from the hinge halves on the door side -arrow- .

Fig 7: Lifting Door
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take off the door.
