57 - Front Door, Central Locking -- 911 CARRERA (991)
>>
WM 572619 Removing And Installing Front Striker Pin (All Models)
>>
Removing Striker Pin
Removing Striker Pin
Unscrew fastening screws
-2-
and take off the striker pin
-1-
.

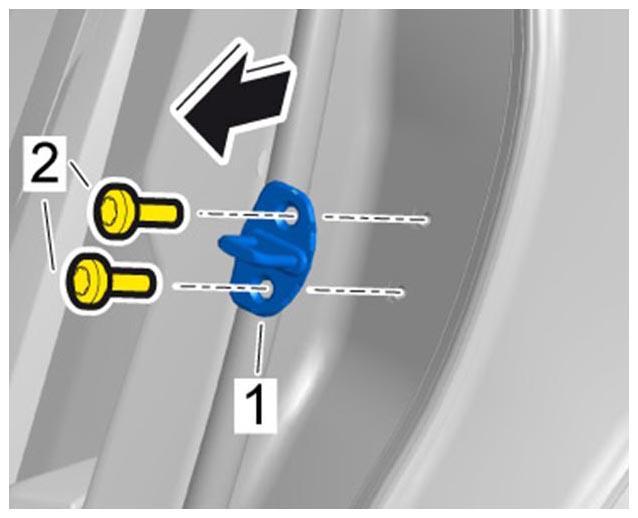

Fig 1: Removing Striker Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
