Adjusting Striker Pin
- Remove the fastening screws -2-
.
- Move striker pin outwards.

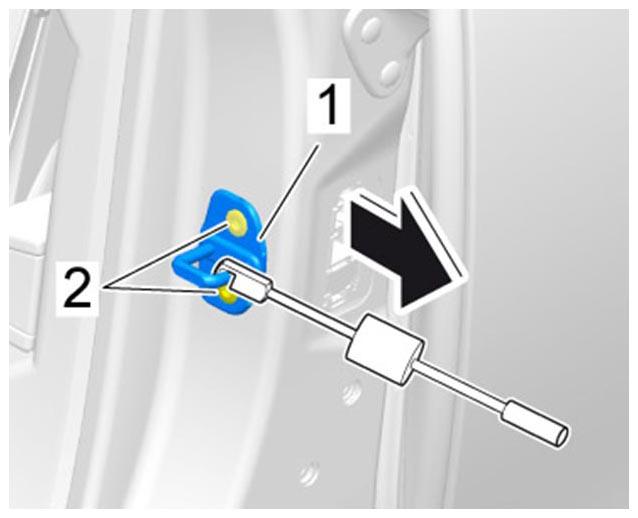

- 2.1. Move the striker pin -1-
outwards (if necessary) using Slide Hammer Kit Nr. 168
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Adjust the striker pin back/down/up (if necessary).

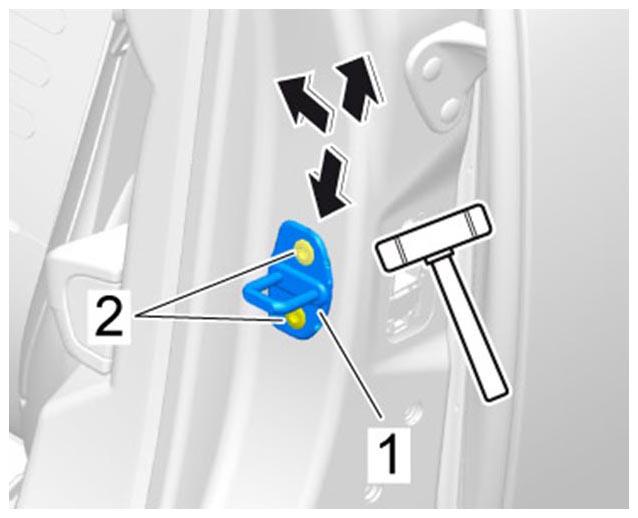

- 3.1. Move striker pin -1-
to the required position using a plastic hammer.
- 3.2. Carefully close the door and check adjustment.
- Screw in fastening screws -2-
and tighten to the specified tightening torque → Tightening torque: 23 Nm (17 ft. lbs.)
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
