Removing Door Lock

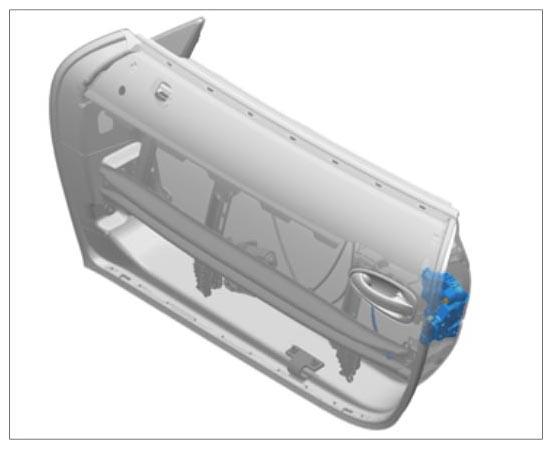

Fig 1: Identifying Door Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip bowden cable for outer actuating mechanism at the door panel.

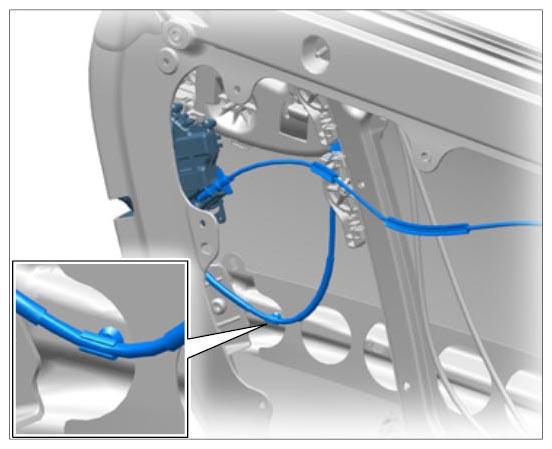

Fig 2: Identifying Bowden Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove bowden cable for outer actuating mechanism.
1. 2.1. Unclip bowden cable -1- (-A- ) and turn it 90° -B- .

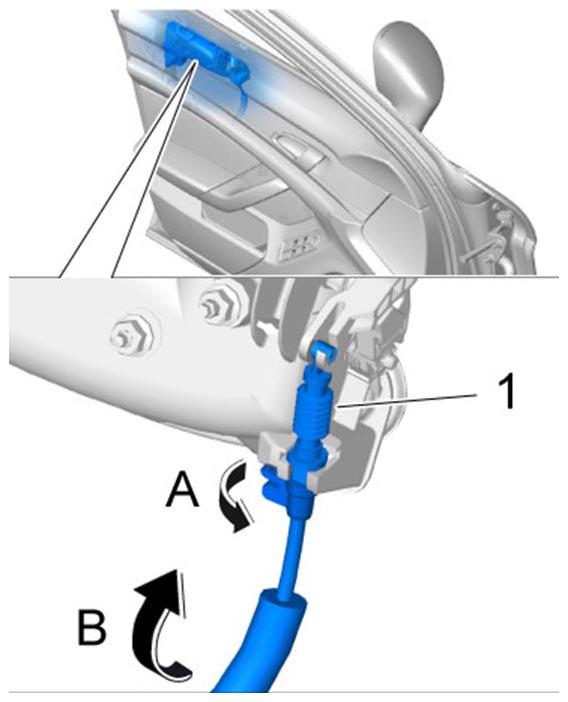

  Fig 3: Removing Bowden Cable From Outer Actuating Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Unhook bowden cable -1- at the handle carrier -A- .

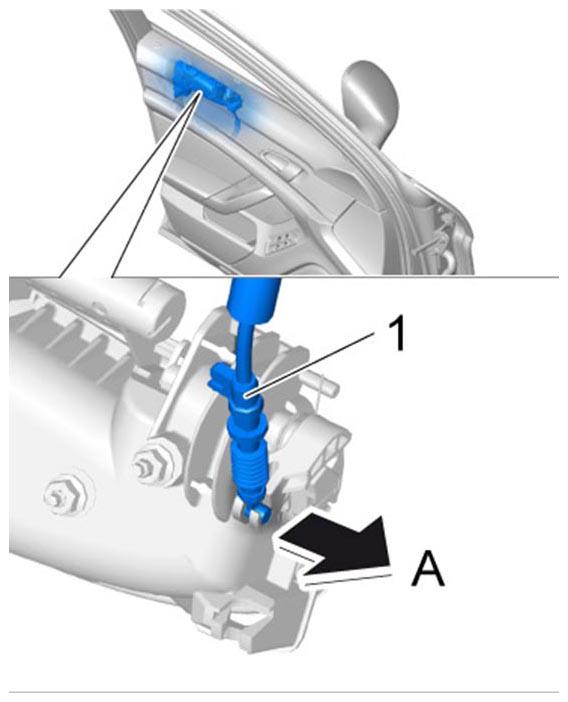

  Fig 4: Unhooking Bowden Cable At Handle Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- .

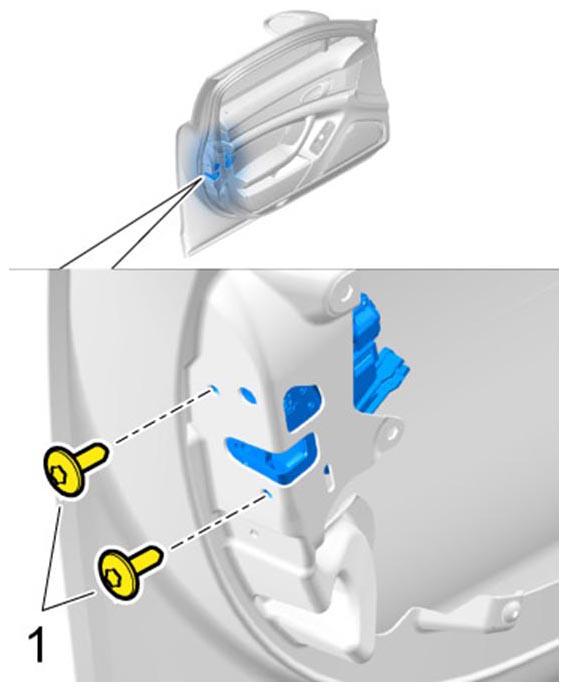

Fig 5: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove door lock -1- .
1. 4.1. Driver's side: Detach door lock from actuator paddle -2- of lock cylinder -arrow A- .

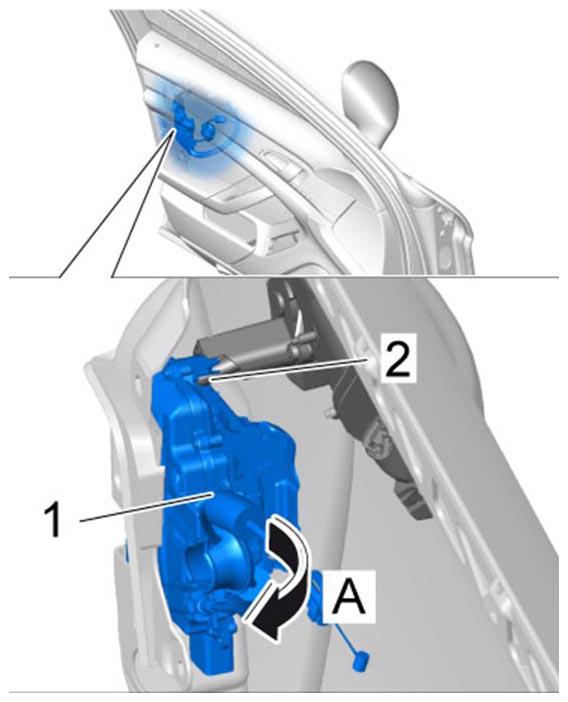

  Fig 6: Detaching Door Lock From Actuator Paddle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove door lock.
