Disassembling Door Handle

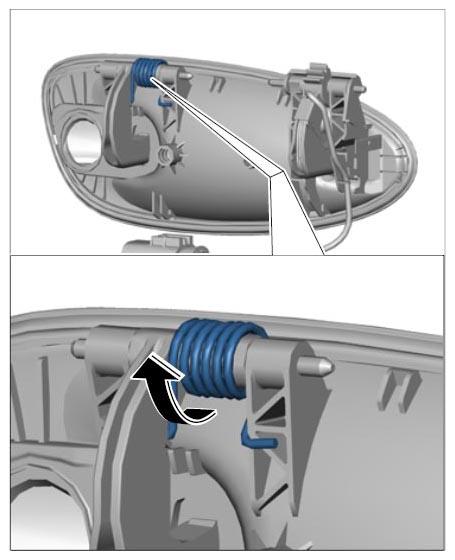

Disengage the spring -arrow- .

Fig 1: Disengaging Return Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

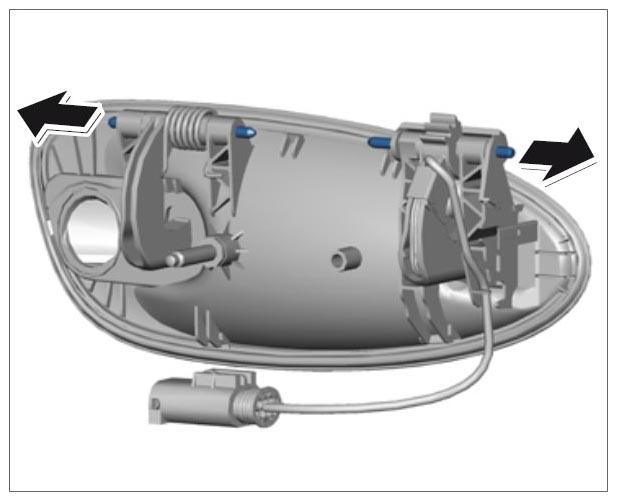

Press the pins through using a suitable tool -arrows- .

Fig 2: Pressing Pins Through
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

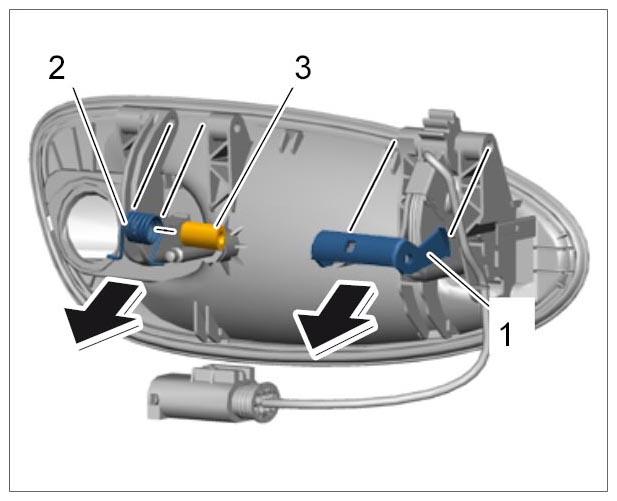

Remove the eccentric -1- and spring -2- with bush -3- -arrows- .

Fig 3: Removing Eccentric
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

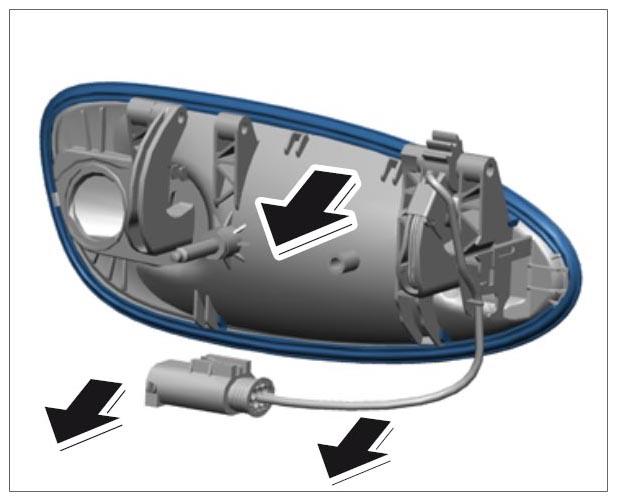

Remove the seal from the handle liner -arrows- .

Fig 4: Removing Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The Press-Out Tool Set Nr. 155 Pos. 1 contains detailed descriptions about removing and installing individual plug-in contacts.
- The specifications displayed are subject to a constant updating process. For this reason, specifications for individual connectors may differ. If this is the case, please use the latest wiring diagram.
Release pins on connector for KESSY/window lowering. (Only for KESSY)
1. 5.1. Write connector coding on a sheet of paper.

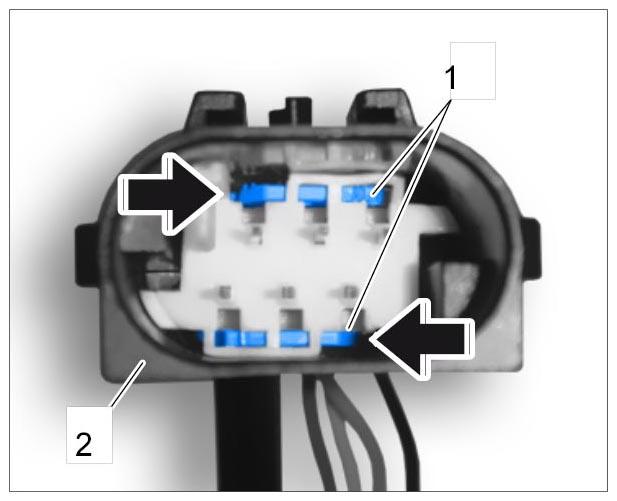

2. 5.2. Release the locking mechanisms -1- in the connector housing -2- using the Press-Out Tool Set Nr. 155 Pos. 1 -arrows- .

  Fig 5: Disassembling Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

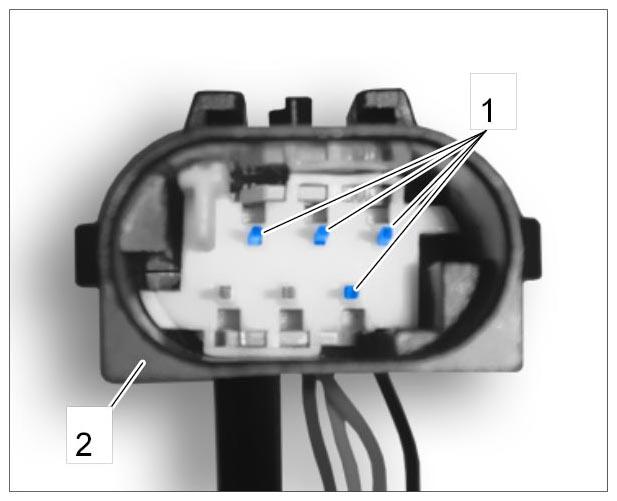

3. 5.3. Release the pins -1- using the press-out tool and pull the line out of the connector housing -2- .

  Fig 6: Disassembling Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

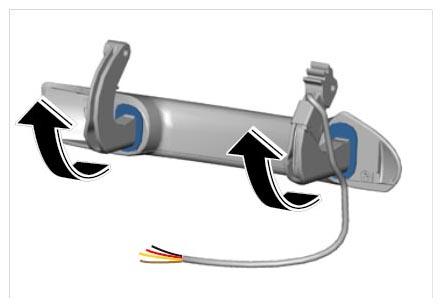

Remove the handle liner from the door handle -arrow- .

Fig 7: Removing Finger Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the pad from the door handle -arrows- .

Fig 8: Removing Pad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

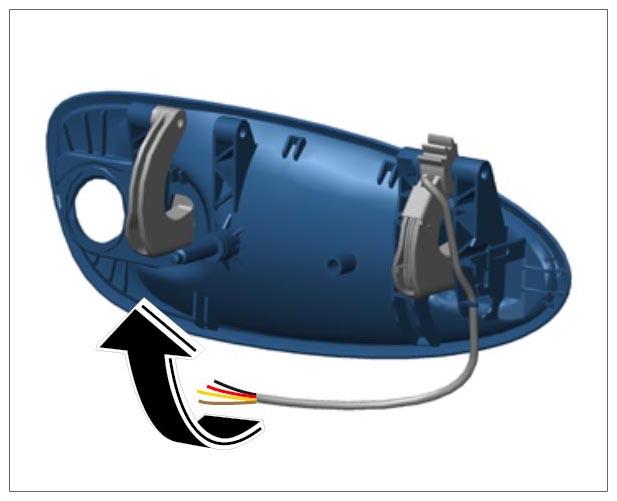

Remove the door handle cover. (Only for KESSY)

Fig 9: Removing Door Handle Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

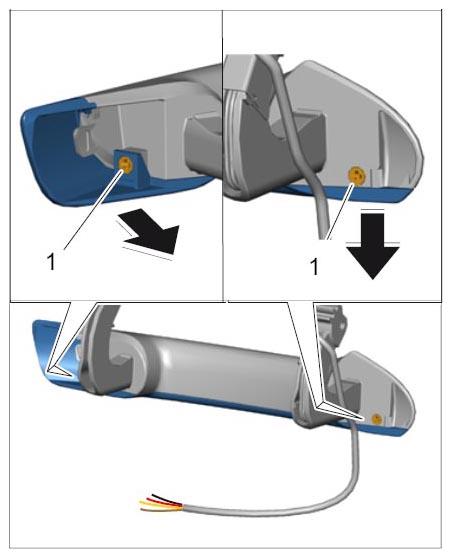

1. 8.1. Unscrew the fastening screws -1- .
2. 8.2. Carefully unclip the cover in an upward direction -arrows- .
