Removing Front Door Handle

  1. Screw off fastening nuts -1-  .

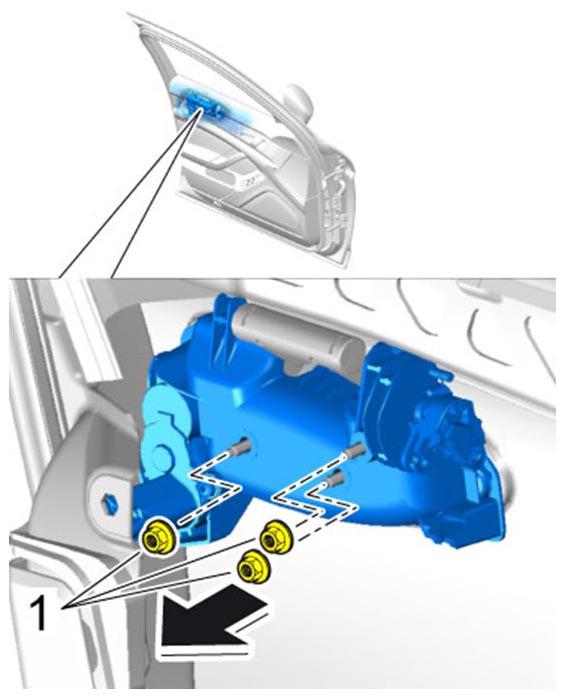

    Fig 1: Removing Front Door Handle Fastening Nuts
    G09994015Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove door handle carrier -1-  inwards -A-  .
    1. 2.1. Secure the finger plate -2-  from the outside to prevent it from falling down.

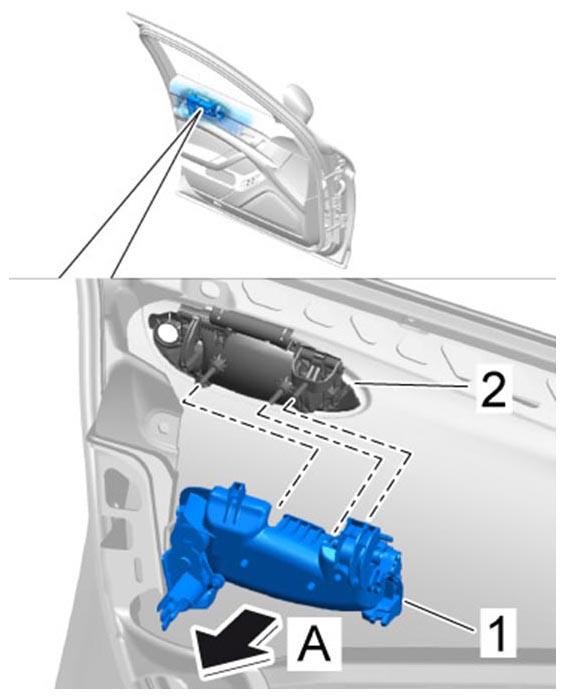

    Fig 2: Removing Door Handle Carrier Inwards
    G09994016Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove finger plate -2-  outwards -A-  .

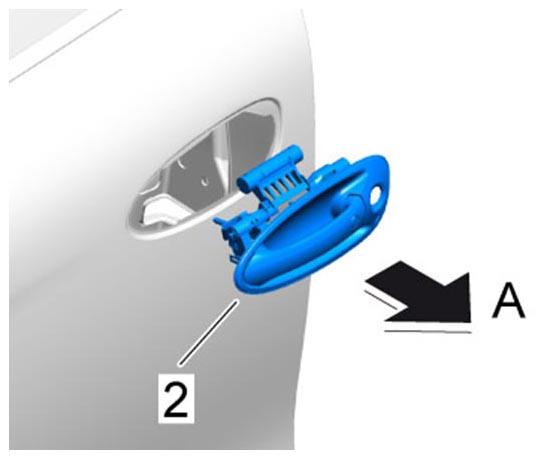

    Fig 3: Removing Finger Plate Outwards
    G09994017Courtesy of PORSCHE CARS NORTH AMERICA, INC.
