Detaching Relay Carrier

  1. Remove molded part -2-  above the relay carrier -1-  (-arrow-  ).

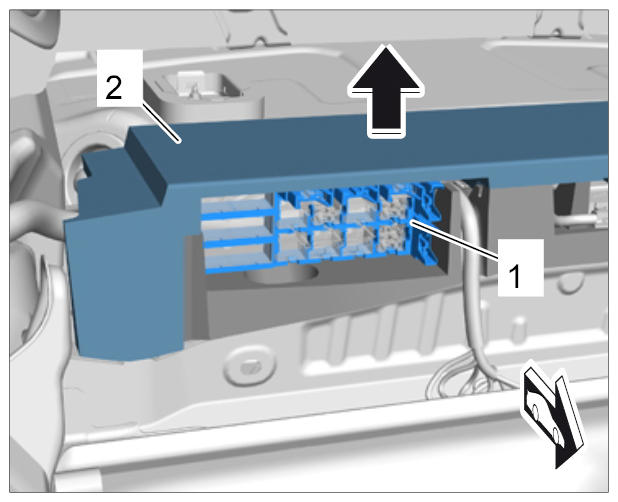

    Fig 1: Removing Molded Part
    G09999859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove relay carrier -1-  from the molded part -3-  (-arrow-  ) and leave it hanging on the lines.

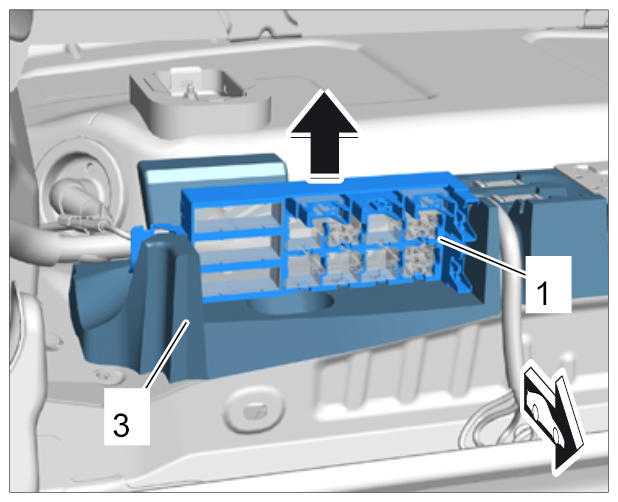

    Fig 2: Removing Relay Carrier
    G09999860Courtesy of PORSCHE CARS NORTH AMERICA, INC.
