Loosening Relay Carrier

  1. Unscrew screws -1, 2-  and remove retaining frame strut.

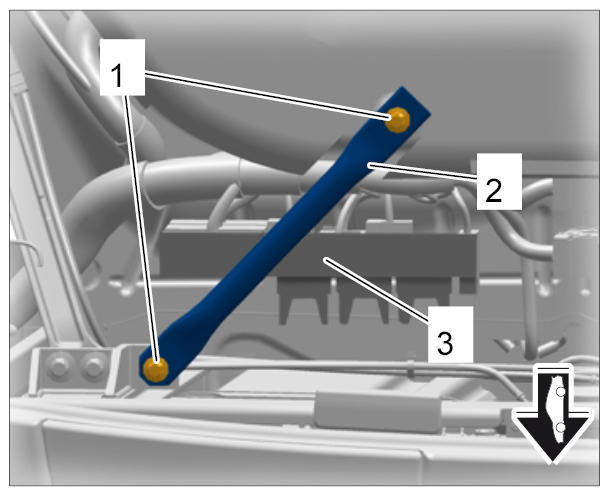

    Fig 1: Removing Strut
    G09999856Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove relay carrier from the molded part and leave it hanging on the lines.
