WM 978719 Removing And Installing Ground Strap For Engine (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition", Gt3)
>>
Removing Ground Strap For Engine
Removing Ground Strap For Engine

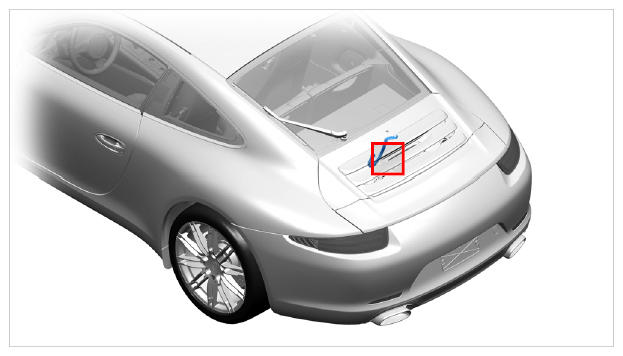

Fig 1: Identifying Ground Strap Installation Position For Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove ground strap for engine.

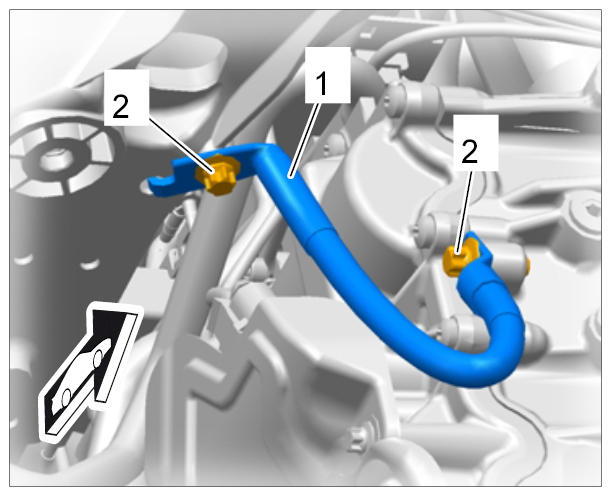

Fig 2: Identifying Ground Strap For Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1.1. Unscrew the fastening screws
-2-
on the body and engine and remove ground strap
-1-
.
