Installing Ground Strap For Engine

Install ground strap for engine.

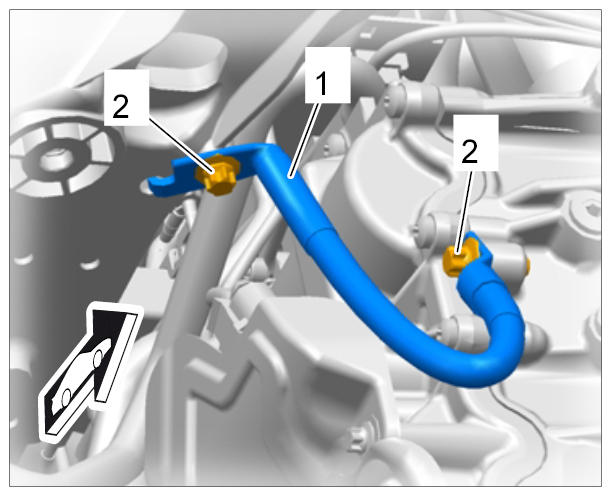

Fig 1: Identifying Ground Strap For Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Place ground strap -1- in installation position.
2. 1.2. Screw in fastening screws -2- and tighten to the specified tightening torque.
  Fastening screw securing ground strap to engine, M8 → Tightening torque: 23 Nm (17 ftlb.) .

  Fastening screw securing ground strap to body, M8 → Tightening torque: 23 Nm (17 ftlb.) .
