Removing Ground Strap For Battery

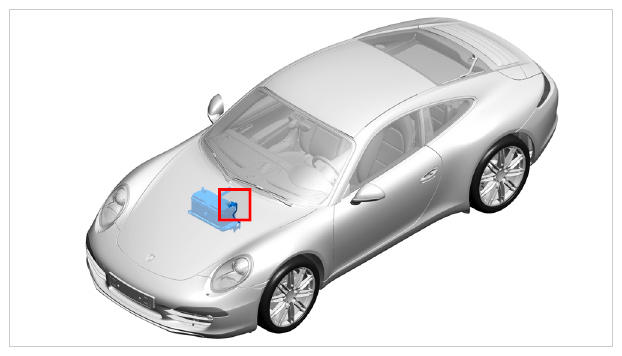

Fig 1: Identifying Ground Strap Installation Position For Battery

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -2- and remove battery console -1- .

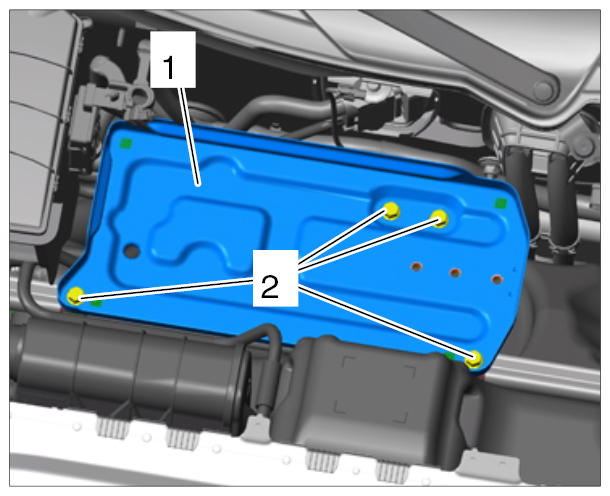

Fig 2: Identifying Battery Console Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Disconnect connector from the fuel pump control unit at the underside of the battery console.
Remove ground strap for battery.

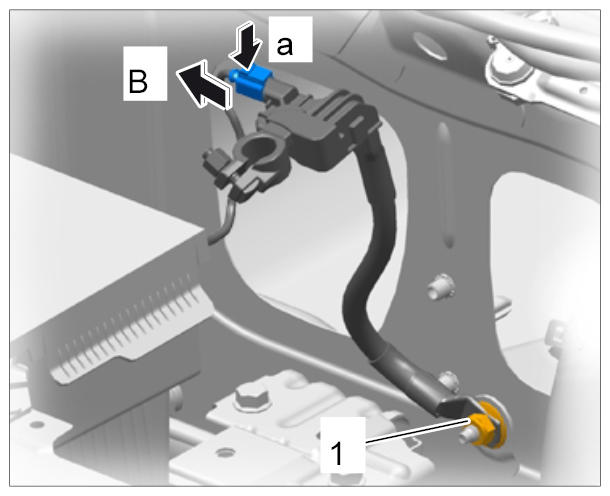

Fig 3: Removing Ground Strap For Battery
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release plug connection -a- and pull it off -B- .
2. 2.2. Unscrew fastening nut -1- from the battery ground strap on the body and remove battery ground strap.
