Installing Ground Strap For Battery

Install ground strap for battery.

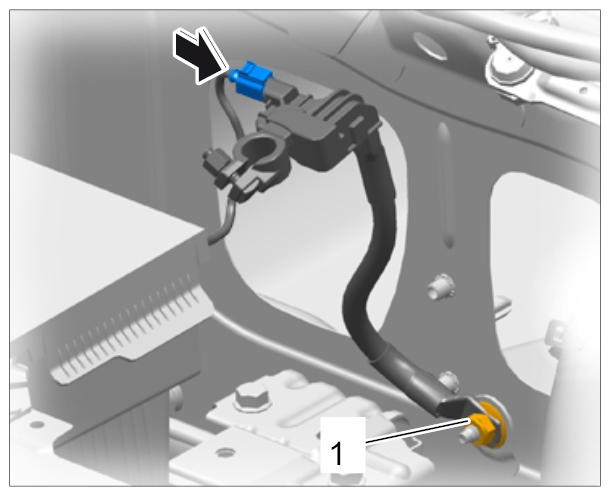

Fig 1: Installing Ground Strap For Battery
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Secure battery ground strap to the body with the fastening nut. → Tightening torque: 15 Nm (11 ftlb.)
2. 1.2. Connect plug connection -arrow- until it engages securely.
Screw in fastening screws -2- for the battery console -1- and tighten to the prescribed tightening torque. → Tightening torque: 23 Nm (17 ftlb.) .

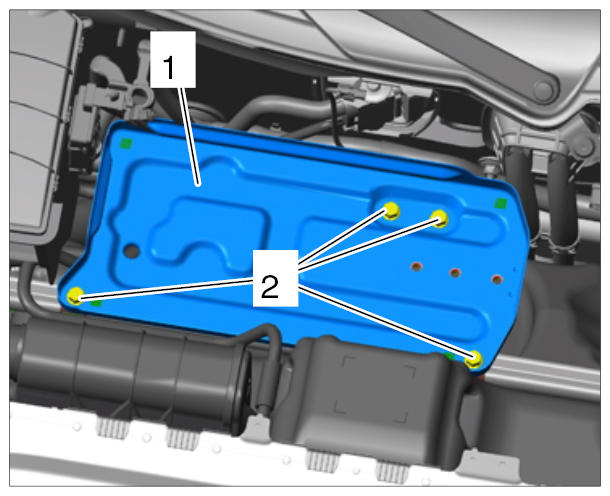

Fig 2: Identifying Battery Console Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
