97 - Cables -- 911 CARRERA (991)
>>
WM 978409 Loosening And Securing Fuse Box (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Securing Fuse Box
Securing Fuse Box
Insert fuse box into the guide
-a-
and push it in
-A-
until the fuse box engages securely.

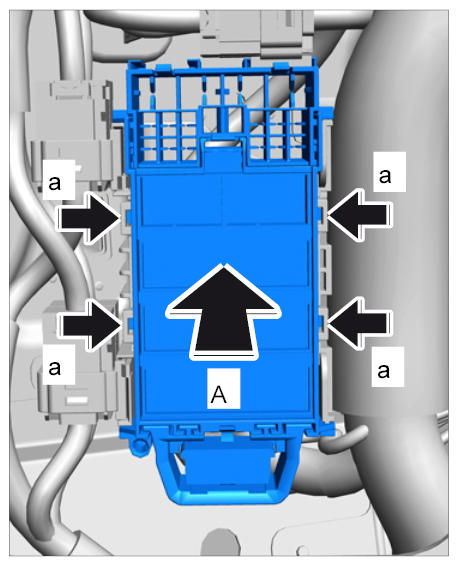

Fig 1: Inserting Fuse Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
