Loosening Fuse Box

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. Release the fuse box -a-  and pull it forward and out -A-  .

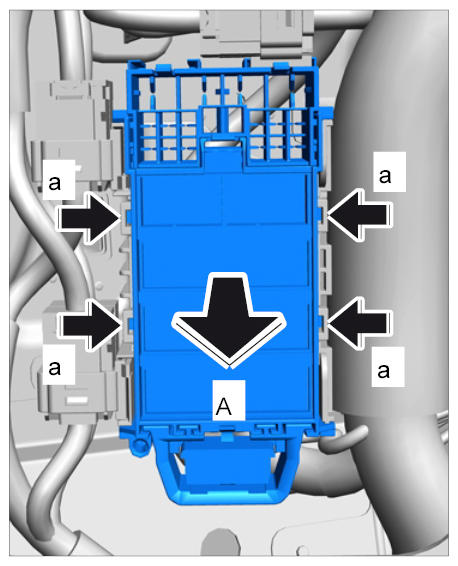

   Fig 1: Releasing Fuse Box

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Leave the fuse box hanging by the connections.
