Removing Relay Carrier 1

  1. Actuate locking mechanism -a-  , swivel out relay carrier 1 -A-  and remove it -arrow-  .
    1. 1.1. Leave relay carrier hanging on wire harness.

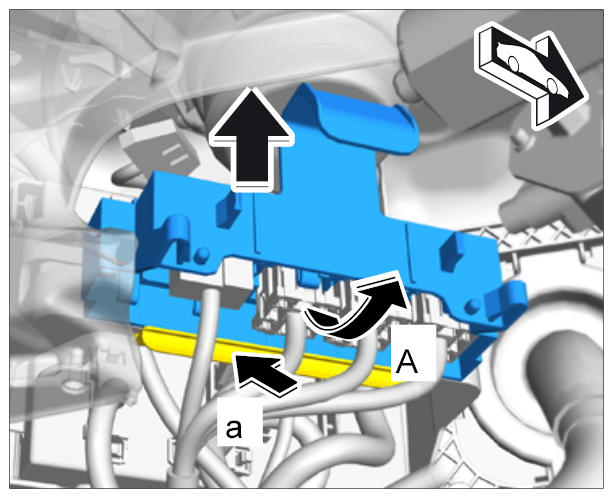

      Fig 1: Removing Relay Carrier 1
      G09999828Courtesy of PORSCHE CARS NORTH AMERICA, INC.
