97 - Cables -- 911 CARRERA (991)
>>
WM 978309 Loosening And Securing Relay Carrier 1 (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Component Information
>>
Notes
Component Information: Notes

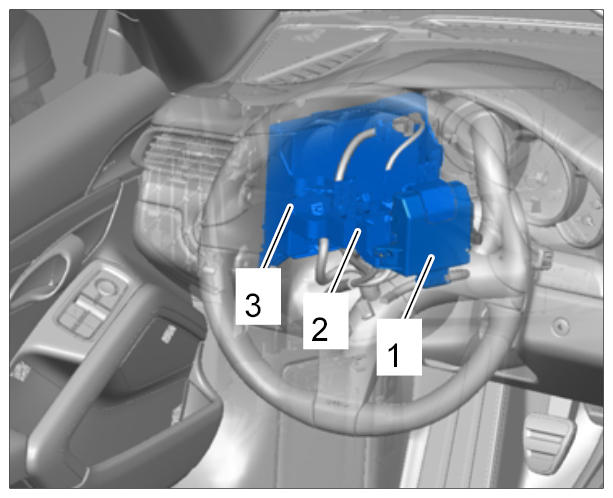

Fig 1: Identifying Electrical Components Installation Position On Left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gateway control unit
Relay carrier 1
Front control unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
