Installing Relay Carrier 1

  1. Insert hook of relay carrier 1 into the fractures on the holder, push downwards.
    1. 1.1. Press pins into the latches until relay carrier 1 engages securely.

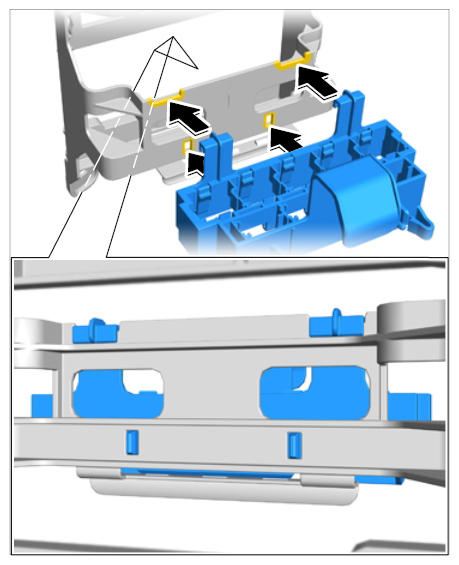

      Fig 1: Inserting Relay Carrier 1
      G09999829Courtesy of PORSCHE CARS NORTH AMERICA, INC.
